Introduction to Synchronizing Panels

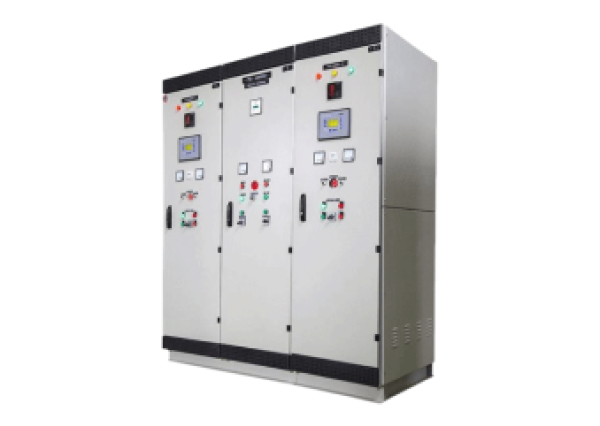

What is a Synchronizing Panel?

A synchronizing panel is an electrical control unit designed to match the voltage, frequency, and phase of two or more power sources before connecting them to a common bus. These sources can be multiple diesel generators, solar panels, or utility grids.

Think of it like traffic merging smoothly on a highway—without accidents or stops. The synchronizing panel is the smart controller that ensures generators or power systems come online in harmony, eliminating the risk of power surges or outages.

These panels are crucial in B2B industries such as manufacturing plants, hospitals, data centers, construction sites, and refineries—places where power loss can result in severe downtime, revenue loss, or even life-threatening situations.

Why Synchronization Matters in Industrial Power Systems

Synchronization is more than a technical requirement—it’s a strategic advantage. Here’s why:

• Uninterrupted Operations: When your grid power fails, and backup generators kick in, the transition must be seamless. A synchronizing panel ensures there’s no lag or inconsistency.

• Load Sharing: In setups with multiple DGs (diesel generators), the panel allows load distribution across generators to avoid overloading or underutilizing any one unit.

• Grid Compliance: Modern utilities demand that any power source feeding into the grid be synchronized precisely to avoid instability. Whether you’re feeding solar into the grid or running a cogeneration system, synchronization is mandatory.

• Energy Optimization: By integrating renewable energy with conventional sources like DGs, synchronizing panels help balance power demand and supply efficiently.

In short, these panels are the unsung heroes that ensure power systems talk the same language before collaborating.

Understanding Generator Synchronization Panels

The Functionality of a DG Synchronizing Panel

A DG synchronizing panel is purpose-built for controlling multiple diesel generators. It’s the brains behind bringing multiple gensets online, coordinating their output, and managing load dynamically. Whether it’s two gensets or ten, the panel ensures they operate together without crashing the system.

Main functions include:

• Auto Start/Stop of DGs based on load

• Voltage and Frequency Matching

• Phase Sequence Verification

• Load Sharing and Shedding

• Manual and Auto Override Controls

The panel reads the power parameters in real time and uses microprocessor-based logic to initiate or halt synchronization. For example, if one generator needs maintenance, the panel offloads its load to the others and disconnects it smoothly.

How a Generator Synchronization Panel Works in Industrial Setups

Let’s consider a food processing plant that runs 24/7. Power failures aren’t acceptable. This plant uses three 500 kVA generators. The generator synchronization panel ensures all three can work together or be operated individually, depending on load requirements.

During peak demand, all three DGs run in sync and share the load equally. During non-peak hours, only one or two generators run, while the third stays offline. The panel switches between these modes based on programmed logic or operator command.

It also monitors:

• Temperature

• Oil pressure

• Fuel consumption

• Fault conditions

All of this helps in preventive maintenance and reduces operational costs.

Auto vs Manual Synchronization Modes

Modern panels from Synchro Electricals support both manual and automatic synchronization modes.

• Manual Mode: An operator manually adjusts speed, voltage, and phase alignment using analog indicators. It’s time-consuming but allows precise human control.

• Automatic Mode: Sensors and logic controllers do the job with pinpoint accuracy. Ideal for mission-critical environments like hospitals or server farms.

While manual synchronization was the norm a decade ago, most B2B sectors are now shifting toward auto-synchronizing panels for safety, speed, and efficiency.

Types of Synchronizing Panels

Based on Power Source Integration

Different industries require different synchronization configurations. Common types include:

• DG to Grid Panels: Synchronizes diesel generators with the utility grid.

• Solar to Grid Panels: Integrates solar inverters with grid power using anti-islanding protection.

• DG + Solar Hybrid Panels: Seamlessly blends solar and diesel for optimal performance and reduced carbon footprint.

Each type ensures power sources merge without conflicts—like choreographed dancers performing in sync.

Based on Operational Control

There are two major classes based on the control mechanism:

• Manual Synchronizing Panels: Best for sites with technical manpower and less dynamic loads.

• Automatic Synchronizing Panels: Ideal for large-scale industries with complex load profiles and limited room for manual intervention.

Digital Synchronizing Panels – The Future of Power Management

With Industry 4.0 around the corner, digital panels with IoT capabilities are taking center stage. These offer:

• Remote Monitoring

• Predictive Maintenance

• Real-Time Alerts

• Cloud-Based Reporting

Synchro Electricals offers advanced panels integrated with SCADA systems and touchscreen HMIs, ensuring top-tier control and transparency.

Synchronized Control Panel in Power Distribution

Key Features of a Synchronized Control Panel

These panels aren’t just metal boxes with wires—they’re sophisticated systems packed with features like:

• Voltage and frequency monitoring

• Synchronization check relays

• PLC/SCADA integration

• Motorized circuit breakers

• Alarm annunciators

• Load balancing relays

Role in Reducing Downtime and Load Sharing

One of the biggest reasons businesses invest in synchronized control panels is uptime reliability. Whether you’re running an oil refinery or a cement plant, downtime means dollars lost. These panels intelligently shift load, isolate faults, and auto-restart systems, minimizing interruptions and maximizing productivity.

Solar Power Synchronization with Grid

How Solar Power is Synced with Grid Power

As industries shift toward renewable energy, solar power synchronization has become a vital part of B2B power infrastructure. When you generate solar power and want to feed it into the grid—or use it alongside grid or diesel sources—it must be properly synchronized to avoid electrical faults.

So, how does this happen?

A solar synchronization panel ensures that the voltage, frequency, and phase angle of the solar inverter output align precisely with those of the utility grid. The system checks these parameters continuously. If there’s even a slight mismatch, it delays or halts the connection to protect both systems.

Solar synchronizing panels use the following components:

• Grid-tie Inverter with built-in MPPT

• Synchronization Relay

• Phase Sequence Monitor

• Reverse Power Relay

• Zero Export Device (if required)

The result? You can safely and efficiently consume your solar energy, export excess power, or even operate in hybrid mode.

Importance of Grid-Tied Solar Synchronizing Panels

For industries with high daytime loads—like textile factories, manufacturing plants, or logistics hubs—grid-tied solar panels offer significant cost savings. But connecting them directly to the grid without a synchronizing panel can be dangerous and non-compliant with power regulations.

Here’s why synchronization is essential:

• Compliance with DISCOM Standards: Utility providers require that any input from solar be phase-aligned and safely integrated.

• Safety: Unsynchronized power leads to voltage spikes, blackouts, and possible damage to grid infrastructure.

• Efficient Energy Use: Synchronizing panels enable smart switching between solar and grid, reducing dependency on diesel and improving ROI.

Synchro Electricals offers solar grid synchronization panels equipped with anti-islanding protection, which ensures the system disconnects during grid outages—protecting maintenance workers and your assets.

Case Example: Solar + DG + Grid Integration

Let’s say a large pharmaceutical plant in Mumbai uses a 200kWp solar system, two 400kVA DGs, and a grid supply. The challenge? Efficiently using solar during the day, switching to DGs during outages, and avoiding any reverse feed into the grid.

With Synchro Electricals’ hybrid synchronization panel, the plant was able to:

• Automatically switch between solar, DG, and grid

• Maintain uninterrupted power during outages

• Optimize diesel usage by prioritizing solar

• Avoid reverse feed and penalties using zero-export devices

That’s the kind of flexibility and reliability today’s B2B industries demand.

Applications of Synchronizing Panels in B2B Industries

Manufacturing

Manufacturing industries often run 24/7 with machines that demand steady and high power. Synchronizing panels enable:

• Seamless power transfer during outages

• Load sharing between multiple generators

• Prioritized solar usage during the day

• Reduced machine downtime due to voltage irregularities

For example, an automotive component factory might use three DG sets in parallel, synchronized to handle varying production shifts. If one line is shut down, the panel can auto-isolate and redistribute the load, improving fuel efficiency.

Hospitals and Data Centers

These are mission-critical environments where even a second’s power failure can cost lives or millions in data loss.

A synchronizing panel ensures:

• Auto-start of backup DGs within seconds of a power cut

• Parallel running of generators for continuous uptime

• Zero power transition delay (ideal for life-support systems)

• Integration with UPS and solar sources for hybrid backup

Hospitals often deploy DG + Grid + Solar hybrid systems controlled through automatic synchronizing panels.

Infrastructure and Construction

Construction projects are spread across dynamic terrains, often lacking reliable grid connections. Synchronizing panels allow:

• Synchronization of mobile DG sets

• Load sharing across temporary worksites

• Safe parallel operation of multiple generators

Whether it’s a metro project or highway development, these panels keep construction machines running without interruptions.

Benefits of Using Synchronizing Panels

Uninterrupted Power Supply

Downtime is the enemy of productivity. A single-minute power cut can ruin hours of production or corrupt critical data. Synchronizing panels offer:

• Seamless switching between power sources

• Auto-recovery after grid faults

• Continuous supply even during load changes or DG transitions

Imagine a cold storage warehouse—the temperature can’t drop, not even for a minute. A synchronizing panel ensures generators kick in instantly, maintaining the required environment.

Fuel and Energy Optimization

Fuel costs are one of the biggest headaches in industries using diesel gensets. Synchronizing panels optimize fuel usage by:

• Running only the required number of DGs

• Prioritizing solar or grid when available

• Load balancing for improved engine performance

Some companies report up to 30% savings on diesel after deploying intelligent synchronization systems.

Improved Load Management

Whether it’s peak-hour demand or machinery starting loads, synchronization systems manage it all by:

• Spreading loads across multiple sources

• Auto-starting extra DGs when needed

• Shedding non-critical loads during emergencies

Smart load management equals less wear and tear, longer equipment life, and better safety for workers.

Challenges and Solutions in Power Synchronization

Frequency Mismatch and Load Imbalance

When two power sources don’t match in frequency or voltage, it can lead to:

• Equipment malfunction

• Dangerous arc flashes

• Generator damage

• Tripped breakers

Synchronization panels solve this by using high-precision sensors and digital controllers to match every parameter before closing the breaker.

They also detect reverse power flow, ensuring no DG is overloaded by the grid or another source.

Role of Modern Panels in Overcoming These Issues

With the advent of PLC-based and IoT-enabled synchronizing panels, most of these challenges are tackled automatically:

• Digital governors fine-tune generator speed

• Advanced relays check phase alignment and time delays

• Auto fault detection isolates problematic sources

• Cloud dashboards let you monitor everything remotely

Synchro Electricals leads the way with adaptive systems that continuously learn from load behavior and suggest improvements in usage and maintenance.

Why Synchro Electricals is the B2B Industry’s Go-To Partner

Overview of Synchro Electricals’ Product Range

From basic manual panels to custom hybrid synchronization systems, Synchro Electricals has a diverse catalog. Key offerings include:

• DG Synchronization Panels

• Solar Synchronization Panels

• Grid-Tie Synchronizing Units

• Digital and IoT-Based Smart Panels

• Customized Industry-Specific Solutions

All panels come with high-grade switchgear, microprocessor-based control units, and compliance with IEC and ISO standards.

Customization for Industry-Specific Needs

No two businesses are alike—and neither should be their power systems. Synchro Electricals offers:

• Site surveys and power audits

• Custom-built panels matching your load profile

• Integration with SCADA, PLCs, or HMI dashboards

• Options for wall-mounted, floor-standing, or containerized enclosures

Whether you’re running a textile mill in Surat or a solar farm in Rajasthan, Synchro Electricals has a panel for your needs.

Buying Guide – What to Look for in a Synchronizing Panel

Compatibility with Existing Infrastructure

Before buying a synchronizing panel, the first step is ensuring it works with your current electrical setup. Here’s what to consider:

• Generator Specifications: The panel must match the kVA, phase, and voltage ratings of your diesel generators or solar inverters.

• Grid Compatibility: Check if the utility grid supply aligns with your load’s needs and local DISCOM regulations.

• Breaker Ratings: Confirm whether your switchgear (like ACBs or MCCBs) can handle the combined load and sync transitions.

• Communication Protocols: For smart industries, the panel must support protocols like MODBUS, PROFIBUS, or CAN for integration with SCADA/BMS systems.

A mismatch between panel and infrastructure can lead to faulty synchronization or even equipment damage. That’s why customization is key—and something Synchro Electricals excels at.

Safety, Automation, and Certifications

Safety is non-negotiable in any industrial setup. When choosing a synchronizing panel, ensure it comes equipped with:

• Phase Failure Relays

• Under/Over Voltage Protection

• Reverse Power and Sync Check Relays

• Emergency Stop Switch

• Earth Fault Detection

Alongside these, automation is critical to reducing manpower and human error. Look for:

• Auto Generator Start/Stop

• Remote Load Control

• Touchscreen HMI Interfaces

• Real-time Alerts

Also, check for certifications like:

• ISO 9001:2015

• CE Marking

• IEC 61439 Compliance

• IP55 or higher enclosure protection

Panels from Synchro Electricals meet and often exceed these benchmarks, making them a reliable choice for industries that can’t afford to compromise.

Installation and Maintenance of Synchronizing Panels

Installation Process by Certified Experts

Installing a synchronizing panel isn’t plug-and-play—it’s a technical process that demands experienced professionals. Here’s a typical installation workflow:

1. Site Survey: Assessment of load requirements, generator specifications, and utility availability.

2. Panel Mounting: Wall-mounted or floor-standing based on site conditions.

3. Wiring and Busbar Integration: Precise connections to generators, grid input, and load distribution panels.

4. Testing and Commissioning:
   • Phase sequence checks

   • Voltage/frequency matching simulation

   • Load trials under different scenarios

5. Training: On-site training for operators and maintenance staff.

Synchro Electricals provides end-to-end services, including panel delivery, on-site installation, and post-installation support. Their engineers are certified and trained to handle multi-site projects across industries.

Routine Maintenance and Remote Monitoring

Even the most robust synchronizing panel needs regular check-ups. Preventive maintenance ensures:

• Long panel life (10–15 years)

• Early fault detection

• Reduced downtime

• Compliance with safety standards

Typical maintenance includes:

• Tightening of terminals and busbars

• Cleaning air filters and enclosures

• Software/firmware updates for digital panels

• Load testing under real conditions

Many modern panels come with remote monitoring capabilities via GSM, LAN, or Wi-Fi. This allows facilities managers to check performance, receive alerts, and generate reports without being on-site.

Synchro Electricals offers AMC (Annual Maintenance Contracts) for their panels, including scheduled inspections and emergency support.

Future Trends in Power Synchronization

IoT-Enabled Synchronizing Panels

The integration of IoT (Internet of Things) is revolutionizing the way synchronizing panels function in the B2B space. These advanced panels now offer:

• Remote Performance Analytics

• Predictive Maintenance Alerts

• Real-Time Synchronization Logs

• Data-Driven Load Optimization

By embedding sensors and smart controllers, IoT-enabled panels can monitor thousands of parameters and transmit data to centralized dashboards. This is especially useful for enterprises managing multiple sites across regions.

Use case: A logistics company with 12 warehouses across India uses Synchro Electricals’ IoT panels to monitor power usage, DG runtime, and solar generation—all from their HQ in Gurgaon.

AI-Based Load Forecasting and Management

Another emerging trend is AI-powered synchronization. These systems learn from historical data, weather patterns, and load behavior to:

• Predict peak demand hours

• Suggest optimized generator run times

• Automatically shift between solar and DG based on load economics

This not only boosts energy efficiency but also extends the lifespan of generators and inverters. AI modules can be added as plug-ins to existing panels, offering B2B clients scalability without a complete overhaul.

Synchro Electricals is currently piloting AI + IoT hybrid panels for smart factories and data centers—marking a bold step toward Industry 5.0.

Conclusion

In today’s power-critical industries, synchronizing panels have evolved from optional add-ons to mission-critical components. Whether you’re running multiple diesel generators, integrating solar into your power mix, or syncing with a volatile grid, a well-designed synchronizing panel ensures smooth, safe, and efficient operations.

From basic manual synchronization to IoT-powered smart panels, the technology is robust, scalable, and highly customizable. And with increasing demands for sustainability and uptime, power synchronization isn’t just a technical process—it’s a strategic investment.

Synchro Electricals stands out as a trusted B2B partner, offering not just panels but full-scale solutions—from design to deployment, and from support to scaling. With a proven track record across industries and a sharp focus on innovation, they’re empowering businesses to stay energized, always.

FAQs
