Arc Flash Hazard Analysis in Industrial PCC Panels and Mitigation Techniques

Posted on by synchro_electricals

Industrial manufacturing facilities operate large electrical distribution networks where PCC panels (Power Control Center panels) manage high-current power flow from transformers to multiple downstream feeders. In such environments, one of the most severe electrical safety risks is an arc flash event inside electrical panels.

An arc flash occurs when electrical current deviates from its intended path and travels through ionized air between conductors or between a conductor and ground. The resulting arc produces extremely high temperatures, intense light, and explosive pressure waves that can severely damage equipment and pose serious danger to personnel.

For this reason, arc flash hazard analysis in industrial PCC panels has become an essential part of modern industrial electrical safety engineering. Proper analysis helps identify potential arc flash risks and enables engineers to implement effective arc flash protection in PCC panels.

When Electrical Energy Escapes Control: The Physics of Arc Flash

An arc flash event is essentially an uncontrolled electrical discharge that releases massive thermal energy within milliseconds. Temperatures inside an arc flash can exceed 20,000°C, which is hotter than the surface of the sun.

Inside industrial PCC panels, arc flashes can occur due to several conditions:

  • insulation failure between conductors
  • loose electrical connections
  • equipment aging or contamination
  • accidental contact with live parts
  • equipment faults during maintenance

When a fault occurs, high current flows through the arc path, rapidly vaporizing metal conductors and creating a plasma channel. This process generates intense heat, high-pressure blast waves, and molten metal particles.

Understanding these phenomena is the first step in performing an accurate arc flash hazard analysis for PCC panels in industrial facilities.

Quantifying the Risk: What Arc Flash Hazard Analysis Measures

An arc flash hazard analysis evaluates the severity of potential arc flash incidents within an electrical system. In industrial PCC panels, this analysis focuses on determining the amount of incident energy that workers may be exposed to during an arc flash event.

Key parameters evaluated during arc flash analysis in power distribution panels include:

  • available short circuit current
  • system voltage levels
  • clearing time of protective devices
  • conductor spacing and panel configuration
  • working distance from the electrical equipment

Using these parameters, engineers calculate the incident energy level (cal/cm²) at different locations in the electrical system.

The calculated incident energy helps determine the required arc flash protection category and personal protective equipment (PPE) needed for safe operation and maintenance.

Fault Current and Protection Speed: Critical Factors in Arc Flash Severity

Two electrical parameters strongly influence the magnitude of an arc flash hazard in PCC panels.

Available Fault Current

The higher the available fault current at the PCC panel, the more energy is released during an arc flash event. Industrial facilities with large transformers and high-capacity power systems often experience very high fault current levels.

Protective Device Clearing Time

The time required for circuit breakers or protection relays to interrupt the fault current plays a major role in arc flash severity. Longer clearing times allow the arc to persist longer, significantly increasing incident energy.

For this reason, modern arc flash protection strategies in PCC panels focus heavily on reducing the fault clearing time through advanced protection systems.

Engineering Techniques for Arc Flash Mitigation

Once an arc flash hazard analysis is completed, engineers can implement multiple strategies to reduce risk within industrial PCC panels.

High-Speed Protection Relays

Advanced protection relays can detect arc faults almost instantly and trigger circuit breaker tripping within milliseconds. Faster interruption significantly reduces arc flash energy levels.

Zone Selective Interlocking (ZSI)

ZSI technology allows upstream and downstream protective devices to communicate with each other. This coordination enables faster fault isolation within the affected zone while maintaining system selectivity.

Arc Flash Detection Systems

Some modern PCC panels include optical arc flash detection systems that use light sensors and current detection to identify arc events immediately. These systems can trip breakers extremely quickly, limiting arc energy.

Remote Switching and Monitoring

Remote operation of industrial PCC panels allows operators to perform switching operations from a safe distance, reducing personnel exposure to arc flash hazards.

These mitigation techniques significantly enhance arc flash protection in industrial power distribution systems.

Panel Design Strategies That Reduce Arc Flash Risk

Apart from protective devices, the physical design of industrial PCC panels also influences arc flash risk.

Electrical engineers implement several design practices to improve safety:

  • segregated busbar compartments to limit arc propagation
  • insulated busbar systems to prevent accidental contact
  • arc-resistant panel enclosures
  • improved cable management and conductor spacing

These design improvements help contain arc energy and reduce the likelihood of arc flash incidents within power control center panels.

Synchro Electricals: Designing Safer PCC Panels for Industrial Power Systems

Synchro Electricals manufactures industrial PCC panels designed with advanced safety considerations for modern manufacturing facilities. The company integrates reliable protection systems, robust busbar designs, and intelligent panel configurations to enhance arc flash protection in PCC panels.

Each PCC panel from Synchro Electricals is engineered to support high fault current environments while maintaining safe electrical operation. By incorporating modern protection technologies and optimized panel design, these panels help reduce electrical hazards in industrial power distribution networks.

With strong expertise in industrial electrical panels and power distribution systems, Synchro Electricals provides reliable solutions that prioritize both operational efficiency and electrical safety.

Strengthening Electrical Safety in Industrial Power Distribution

As industrial electrical systems continue to grow in capacity and complexity, the importance of arc flash hazard analysis in PCC panels becomes even more critical.

Through accurate incident energy calculations, improved protection coordination, and advanced mitigation techniques, engineers can significantly reduce arc flash risks in industrial facilities.

Implementing strong arc flash protection strategies in PCC panels not only protects personnel and equipment but also ensures the long-term reliability of industrial power distribution systems.

FAQs

  1. 1. What is an arc flash in a PCC panel?

    An arc flash is an electrical discharge through air between conductors that generates extremely high temperatures and pressure, posing serious risks in industrial electrical panels.

  2. 2. Why is arc flash hazard analysis important for PCC panels?

    Arc flash hazard analysis helps determine the potential incident energy levels during electrical faults and identifies safety measures needed to protect personnel and equipment.

  3. 3. What factors influence arc flash severity in electrical panels?

    Available fault current, system voltage, protective device clearing time, and equipment configuration all influence the severity of an arc flash event.

  4. 4. How can arc flash hazards be reduced in industrial PCC panels?

    Mitigation techniques include fast protection relays, arc flash detection systems, zone selective interlocking, and improved panel design.

  5. 5. What is the purpose of arc flash protection in PCC panels?

    Arc flash protection systems detect and interrupt electrical faults quickly, minimizing incident energy and improving safety in industrial power distribution systems.

Designing PCC Panels for Heavy Industrial Load Centers: Best Practices & Standards

Posted on by synchro_electricals

Heavy industrial facilities such as steel plants, cement manufacturing units, refineries, and large process industries operate with extremely high electrical loads. These environments require robust and reliable power distribution systems capable of handling continuous operation, high current demand, and significant fault levels. At the center of such distribution networks lies the PCC panel (Power Control Center panel).

A well-engineered PCC panel for heavy industrial load centers acts as the primary interface between incoming power sources – such as transformers or generators – and multiple downstream electrical feeders. Because these panels handle large currents and complex distribution networks, following proper PCC panel design best practices is essential for ensuring electrical safety, operational reliability, and efficient power management.

Designing industrial PCC panels involves careful consideration of electrical ratings, busbar configuration, protection systems, and compliance with international electrical standards.

PCC Panels in Heavy Industrial Power Distribution

In large industrial facilities, power is typically received from high-capacity transformers and distributed across multiple sections of the plant. The PCC panel functions as the central distribution hub that manages this power flow.

From the PCC panel, electrical power is supplied to downstream panels such as MCC panels (Motor Control Centers), distribution boards, and specialized process equipment panels. Because these feeders support critical plant operations, the PCC panel must provide reliable switching, protection, and load management capabilities.

Heavy industries often operate equipment such as large motors, compressors, furnaces, and processing machinery that demand a stable and uninterrupted power supply. A properly designed PCC panel for industrial load centers ensures balanced distribution of electrical loads while maintaining protection against overloads and short circuits.

Electrical Ratings and Fault Level Considerations

One of the most important aspects of PCC panel design for heavy industrial applications is selecting the correct electrical ratings. Industrial facilities typically operate with high transformer capacities, which can result in significant short-circuit fault levels.

The PCC panel short circuit withstand rating must be capable of handling the maximum prospective fault current within the system. If the panel components are not rated properly, severe damage may occur during fault conditions.

Engineers must evaluate several parameters when determining the electrical ratings of industrial PCC panels, including transformer capacity, system voltage, and network configuration. Circuit breakers used in PCC panels must also have sufficient interrupting capacity to safely clear electrical faults.

Ensuring proper coordination between breaker ratings and system fault levels is a critical step in developing reliable power distribution infrastructure.

Busbar System Design for High Current Distribution

The busbar system inside a PCC panel carries large electrical currents from the incoming supply to outgoing feeders. Because heavy industrial plants often require high current capacities, the design of the busbar system becomes a major engineering consideration.

Copper busbars are commonly used in industrial PCC panels due to their high electrical conductivity and strong mechanical properties. The cross-sectional area of the busbar must be carefully calculated to ensure it can handle the rated current without excessive temperature rise.

Proper spacing between busbars is also essential to prevent flashover and ensure adequate insulation between phases. In many heavy industrial power control center panels, busbars are supported using insulated supports that provide both electrical insulation and mechanical stability.

Thermal management is another important factor in PCC panel design best practices. Adequate ventilation and proper panel layout help dissipate heat generated by high current flow.

Protection and Control Integration

Protection systems are a vital component of PCC panels used in heavy industrial load centers. Industrial electrical networks are exposed to various fault conditions, including overloads, short circuits, and earth faults.

To detect and isolate these faults quickly, modern PCC panels integrate advanced protection relays and circuit breakers. These devices continuously monitor electrical parameters and trip the breaker if abnormal conditions occur.

Protection schemes implemented in industrial PCC panels typically include:

  • Overcurrent protection for feeder circuits
  • Short circuit protection to isolate faults
  • Earth fault protection to detect leakage currents
  • Protection coordination with downstream MCC panels

These protection systems ensure that faults are isolated at the appropriate location, minimizing disruption to the rest of the plant.

Compliance with Electrical Standards and Safety Guidelines

Designing reliable PCC panels for heavy industrial applications also requires strict adherence to recognized electrical standards. Standards ensure that switchgear equipment meets safety and performance requirements under demanding operating conditions.

Common standards followed in PCC panel design and manufacturing include IEC 61439, IEC 60947, and relevant national electrical standards. These standards define requirements for temperature rise limits, insulation coordination, mechanical strength, and fault withstand capability.

Compliance with these standards ensures that power control center panels used in industrial load centers can operate safely even under extreme electrical conditions.

Manufacturers such as Synchro Electricals, involved in the engineering of industrial electrical panels, typically design PCC panels following these established standards to ensure reliability in high-load industrial environments.

Building Reliable Power Infrastructure for Heavy Industry

Heavy industrial facilities depend on a continuous and reliable power supply to maintain production processes. The PCC panel serves as the backbone of industrial power distribution, managing incoming electrical power and supplying it safely to various plant loads.

By following proven PCC panel design best practices, engineers can ensure that power distribution systems remain stable, protected, and capable of supporting demanding industrial operations.

Careful attention to electrical ratings, busbar configuration, protection coordination, and compliance with industry standards allows PCC panels to deliver reliable performance in heavy industrial load centers while maintaining high levels of electrical safety.

FAQs

  1. 1. What is a PCC panel used for in industrial facilities?

    A PCC panel distributes electrical power from the main transformer to various sections of an industrial plant while providing protection and switching functions.

  2. 2. Why are PCC panels important in heavy industrial load centers?

    They manage large electrical loads and ensure safe power distribution to critical equipment and downstream panels.

  3. 3. What materials are commonly used for PCC panel busbars?

    Copper busbars are widely used due to their high conductivity and ability to handle large currents.

  4. 4. What protection systems are included in PCC panels?

    Typical protection systems include overcurrent protection, short circuit protection, and earth fault protection.

  5. 5. Which standards are commonly followed in PCC panel design?

    PCC panels are typically designed according to standards such as IEC 61439 and IEC 60947 to ensure safety and reliability.

PCC Panels for Textile Dyeing Units: Handling Heavy Load Fluctuations

Posted on by synchro_electricals

Textile dyeing units are among the most power-sensitive environments in the textile and apparel industry. Dyeing machines, jet dyeing systems, drying units, pumps, compressors, and chemical processing equipment create continuous and fluctuating electrical loads. Managing this electrical demand requires a stable power distribution system, and that is where PCC Panels become essential.

In modern textile dyeing plants, PCC Panels for Textile Industry serve as the main electrical distribution backbone, ensuring stable power delivery, controlled load distribution, and safe operation across dyeing machines and textile processing equipment. Without properly designed textile dyeing units often face voltage instability, equipment shutdowns, and production delays.

Power Challenges Inside Textile Dyeing Units

Textile dyeing operations involve complex electrical loads that fluctuate throughout the production cycle. Dyeing machines, textile processing motors, water pumps, chemical dosing systems, and drying equipment frequently start and stop depending on production stages.

These load variations place significant stress on the plant’s electrical infrastructure. Textile factories require PCC Panels for the textile industry that can manage heavy load fluctuations while maintaining stable voltage and power distribution. When dyeing machines operate simultaneously, power demand can increase rapidly, making it reliable for maintaining consistent plant operations.

In textile processing plants, improper power distribution often leads to machine faults, uneven dyeing processes, and unexpected production interruptions.

Managing High Load Variations in Textile Dyeing Plants

Dyeing plants rarely operate under constant load conditions. During heating cycles, dyeing machines draw large amounts of power, while auxiliary systems such as circulation pumps and dryers create additional demand.

PCC Panels are designed to manage these heavy and variable loads by distributing power across different sections of the textile plant. By balancing electrical loads and preventing overload conditions, panels help textile dyeing units operate efficiently even during peak production hours.

Reliable power distribution allows dyeing machines, textile dryers, and processing equipment to run smoothly without electrical disturbances that could affect product quality.

Supporting Continuous Textile Production

Textile manufacturing facilities typically operate for long production shifts, often running machines continuously to meet production targets. Power interruptions during dyeing processes can lead to material waste, inconsistent dye quality, and significant production losses.

This is why PCC Panels for the Textile Industry are designed to support continuous plant operation. By maintaining controlled power flow and preventing electrical overloads, PCC Panels ensure an uninterrupted power supply to textile dyeing machines, processing equipment, and plant utilities.

Stable electrical infrastructure allows textile manufacturers to maintain production consistency and avoid costly downtime.

Coordinating Multiple Systems in Textile Processing Plants

Textile dyeing plants include multiple electrical systems operating together. Dyeing machines, air compressors, water treatment systems, effluent treatment plants, ventilation systems, and heating equipment all rely on coordinated power distribution.

They act as the central control point that manages these systems. By distributing power safely across the textile facility, PCC Panels for the Textile Industry help ensure that both production equipment and supporting infrastructure operate reliably.

Without properly engineered PCC panels, electrical imbalances can disrupt entire textile processing lines.

Power Stability for Quality Dyeing Operations

Consistent electrical supply is crucial for maintaining dyeing quality. Variations in voltage or power supply can affect heating elements, circulation pumps, and automated control systems used in textile dyeing.

PCC Panels for the Textile Industry help maintain power stability by regulating electrical distribution and protecting textile machines from overload or fault conditions. This stability ensures that dyeing processes remain consistent, helping textile manufacturers achieve uniform color quality across production batches.

Expanding Textile Manufacturing Capacity

Many textile manufacturers expand their dyeing capacity by adding new machines or increasing production lines. Electrical infrastructure must support this growth without requiring major redesign.

PCC Panels are typically designed with scalability in mind, allowing textile plants to add new dyeing machines, dryers, and auxiliary equipment as production demand increases. This flexibility makes PCC panels a long-term solution for growing textile facilities.

Reliable Power Infrastructure for Textile Plants

Synchro Electricals develops PCC Panels for the Textile Industry designed specifically for textile manufacturing environments, including dyeing plants, processing units, and textile production facilities. Their solutions help textile manufacturers manage high electrical loads while ensuring safe and efficient plant operations.

Conclusion

Textile dyeing units require reliable electrical systems capable of handling heavy and fluctuating power loads. PCC Panels for the Textile Industry provide the structured power distribution necessary to support dyeing machines, textile processing equipment, and plant utilities.

By stabilizing electrical supply, managing load variations, and supporting continuous production, PCC Panels for Textile Industry play a vital role in ensuring efficient and reliable operations across textile dyeing plants.

FAQs

1. Why are PCC Panels for Textile Industry important in textile dyeing units?

They manage high electrical loads from dyeing machines, pumps, dryers, and processing equipment, ensuring stable power distribution.

2. How do PCC Panels for the Textile Industry handle load fluctuations?

They distribute electrical loads across multiple feeders, preventing overload conditions during peak production.

3. Can PCC Panels for the Textile Industry reduce downtime in textile plants?

Yes. Reliable power distribution helps prevent machine shutdowns caused by electrical faults.

4. Are PCC Panels for the Textile Industry suitable for large textile factories?

Yes. They are designed to support heavy industrial loads and large-scale textile manufacturing operations.

5. Can PCC panels support expansion in textile dyeing plants?

Yes. PCC Panels for the Textile Industry are typically designed to allow additional machines and production lines to be integrated easily.

Short Circuit Withstand Ratings and Busbar Sizing in PCC Panels for High Fault Level Systems

Posted on by synchro_electricals

In heavy industrial power systems, electrical faults are not hypothetical events—they are design realities that must be anticipated and engineered for. Large transformers, parallel feeders, high-capacity motors, and captive generation significantly increase prospective fault currents at the low-voltage level. In such environments, the Power Control Center (PCC) panel becomes the first line of defense against catastrophic electrical failure.

The adequacy of a PCC panel is therefore defined not just by its current rating, but by its PCC Panel Short Circuit Rating and the integrity of its busbar system under extreme fault conditions. Improper evaluation of short-circuit withstand capability or incorrect busbar sizing can lead to mechanical deformation, insulation failure, or complete panel destruction within milliseconds of a fault.

Understanding PCC Panel Short Circuit Rating in Heavy Industry

The PCC Panel Short Circuit Rating represents the panel’s ability to withstand thermal and electromechanical stresses caused by short-circuit currents for a specified duration, typically 1 second or 3 seconds. In heavy industry, fault levels at PCC incomers can easily exceed 50kA due to high transformer capacities and low system impedance.

Short-circuit rating is not limited to the breaker interrupting capacity alone. It applies to the entire current-carrying structure of the PCC panel, including busbars, supports, insulation systems, and interconnections. A breaker may successfully interrupt a fault, but if the busbar system cannot withstand the initial fault forces, severe damage occurs before protection even operates.

Electromechanical Forces During Short-Circuit Events

When a short circuit occurs, extremely high currents flow through the PCC panel busbars almost instantaneously. These currents generate strong electromagnetic forces proportional to the square of the fault current. In high fault level systems, these forces attempt to repel or attract busbars violently, stressing supports and joints.

Simultaneously, thermal energy is released due to I²R losses, rapidly increasing conductor temperature. If busbar sizing and spacing are inadequate, thermal expansion and mechanical stress combine to cause permanent deformation or insulation breakdown.
This dual stress—mechanical and thermal—is the primary reason why PCC Panel Short Circuit Rating must be evaluated holistically rather than as a nominal figure.

Busbar Sizing Philosophy for High Fault Level PCC Panels

Busbar sizing in PCC panels for heavy industry extends beyond continuous current capacity. While current rating determines steady-state operation, short-circuit performance dictates survival under fault conditions.

Correct busbar sizing considers cross-sectional area, material conductivity, phase spacing, and support arrangement. Copper busbars are commonly preferred in high fault level applications due to superior mechanical strength and thermal performance. However, material choice alone is insufficient without proper spacing and rigid support design.

Inadequate busbar sizing may pass routine current tests but fail catastrophically during a real short-circuit event, rendering the PCC panel unsafe and unusable.

PCC Panel Short Circuit Rating and Standards Compliance

Short-circuit withstand ratings are validated through design calculations and type testing in accordance with international standards such as IEC 61439. These standards specify temperature rise limits, mechanical integrity requirements, and fault duration criteria.

However, in heavy industry, reliance on minimum standard compliance is often insufficient. Fault levels may be close to or exceed standard test values, particularly in plants with parallel transformers or on-site generation. In such cases, conservative design margins and verified busbar configurations become essential.

Engineering judgment plays a critical role in translating standard requirements into real-world reliability.

Coordination Between Breakers and Busbar Withstand Capability

A common misconception is that a high-interrupting-capacity breaker alone ensures short-circuit safety. In reality, the breaker clearing time directly affects the thermal stress imposed on the busbar system. Even a fast-acting breaker allows peak fault current to flow during the first half-cycle.

Therefore, the busbar system must be capable of withstanding the peak short-circuit current as well as the thermal energy until fault clearance. This coordination between breaker characteristics and PCC Panel Short Circuit Rating is a critical aspect of protection and panel design in heavy industry.

Impact of High Fault Levels on Panel Longevity and Safety

Repeated exposure to near-fault conditions, even without full short circuits, accelerates mechanical fatigue and insulation aging in PCC panels. Poorly designed busbar systems may not fail immediately but degrade progressively, increasing the risk of arc faults and internal flashovers.

From a safety perspective, insufficient short-circuit withstand capability increases arc-flash energy levels, endangering personnel during fault events. Proper busbar sizing and robust short-circuit design reduce fault energy propagation and improve overall plant safety.

Engineering Approach of Synchro Electricals

Synchro Electricals designs PCC panels for heavy industry with short-circuit performance as a primary engineering criterion. Fault level analysis, busbar force calculations, and thermal withstand verification are integrated into the design process rather than treated as post-design checks.

Each PCC panel is engineered to meet the required PCC Panel Short Circuit Rating under actual site conditions, ensuring mechanical integrity, electrical safety, and long-term reliability in high fault level systems.

Conclusion

In heavy industrial power systems, short-circuit events define the true robustness of electrical infrastructure. A PCC panel that cannot withstand fault stresses compromises not only equipment but also plant safety and continuity.

Proper evaluation of PCC Panel Short Circuit Rating, combined with disciplined busbar sizing and structural design, ensures that PCC panels remain stable under extreme electrical stress. In high fault level environments, short-circuit withstand capability is not an optional enhancement—it is a fundamental design requirement.

FAQs

1. What does PCC Panel Short Circuit Rating actually represent?

It defines the ability of the PCC panel - including busbars, supports, and insulation—to withstand thermal and electromechanical stresses caused by a specified short-circuit current for a defined duration.

2. Is breaker interrupting capacity sufficient to ensure short-circuit safety?

No. While breakers interrupt fault current, the busbar system must withstand peak short-circuit forces before the breaker clears the fault.

3. How does busbar sizing affect short-circuit withstand capability?

Busbar cross-section, spacing, material, and support design directly influence mechanical strength and thermal performance during fault conditions.

4. Why are high fault levels common in heavy industrial plants?

Large transformers, parallel feeders, and captive generation significantly reduce system impedance, increasing prospective fault currents at the PCC level.

5. Can a PCC panel degrade over time due to repeated high-stress events?

Yes. Repeated exposure to near-fault conditions can weaken busbar supports and insulation, reducing long-term reliability if not properly designed.

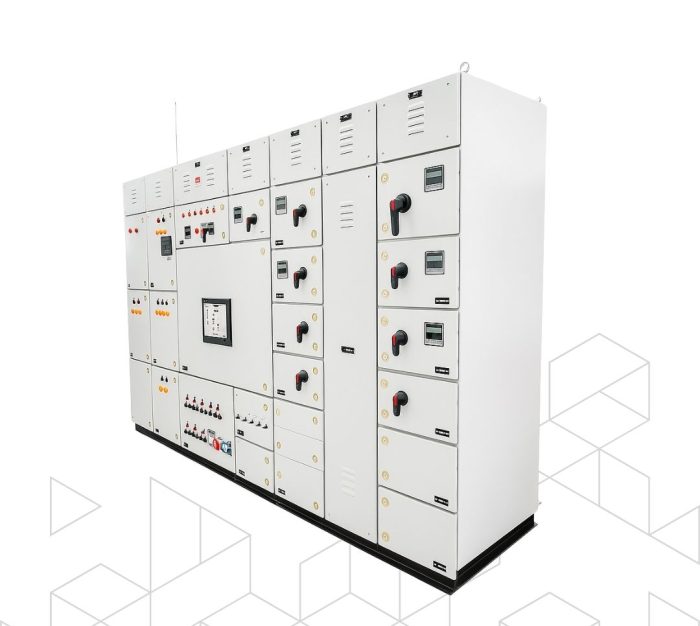

PCC Panels for Plastic Manufacturing Units: Managing High Energy Loads with Ease

Posted on by synchro_electricals

Plastic and polymer manufacturing units are among the most power-intensive industrial environments. From injection molding and extrusion to compounding, blow molding, and recycling, these processes rely on machines that draw heavy, continuous electrical loads. Any instability in power distribution directly impacts production quality, machine life, and operational efficiency.

In this context, PCC Panels for Plastic Industry play a central role. Power Control Center (PCC) panels are not just electrical distribution units; they are the backbone that manages high-energy loads, stabilizes power flow, and ensures uninterrupted operations in plastic manufacturing plants. Poorly designed PCC panels often result in frequent tripping, overheating, and unexpected downtime—issues that plastic manufacturers cannot afford.

Energy-Intensive Nature of Plastic Manufacturing

Plastic manufacturing equipment operates under demanding electrical conditions. Injection molding machines draw high peak loads during heating and clamping cycles. Extruders run continuously for long production shifts. Auxiliary systems such as chillers, compressors, dryers, and material handling units add further load complexity.

Because of this, PCC Panels for Plastic Industry must be designed to handle:

  • Continuous high current demand
  • Sudden load variations during machine cycles
  • Simultaneous operation of multiple heavy machines
  • Long operating hours without thermal stress

Generic power panels are rarely suitable for such environments. Plastic manufacturing requires PCC panels that are purpose-built for high-load, high-duty industrial applications.

How PCC Panels Stabilize Power in Plastic Manufacturing Units

In plastic plants, unstable power supply often leads to rejected batches, machine faults, and inconsistent product quality. PCC panels help stabilize the electrical system by managing how power is distributed across machines and process lines.

PCC Panels for Plastic Industry ensure balanced load distribution, preventing overloading of individual feeders. They also support controlled power delivery to sensitive equipment, reducing voltage fluctuations that affect heating elements and motor-driven systems. This stability directly improves process consistency and machine performance.

Managing Peak Loads and Continuous Operation

Plastic manufacturing rarely follows a fixed load pattern. Machines start and stop based on production schedules, mold changes, and material requirements. These frequent load variations place stress on the electrical distribution system.

Well-designed PCC Panels for Plastic Industry are engineered to manage both peak demand and continuous operation. They accommodate high starting currents, support parallel feeder configurations, and prevent nuisance tripping during load surges. This capability allows production teams to operate machines flexibly without worrying about electrical interruptions.

Reducing Downtime in Plastic Processing Plants

Downtime in plastic manufacturing is expensive. Restarting extrusion lines or molding machines often involves material waste, re-heating cycles, and production delays. Electrical failures at the PCC level can shut down entire sections of a plant.

By enabling structured power distribution and selective isolation, PCC Panels for Plastic Industry help contain electrical issues before they escalate. A fault in one machine feeder does not necessarily impact the entire plant, allowing other production lines to continue operating. This localized fault handling significantly improves plant uptime and operational reliability.

Supporting Auxiliary Systems in Plastic Manufacturing

Plastic plants rely heavily on auxiliary equipment—chillers for mold cooling, compressors for pneumatic systems, material dryers, and ventilation systems. These systems are critical for maintaining process quality and safety.

PCC panels act as the central coordination point for these auxiliary loads. PCC Panels for Plastic Industry ensure that both production machinery and support systems receive stable and protected power, maintaining overall plant efficiency. A failure in auxiliary systems can be just as disruptive as a machine shutdown, making reliable power distribution essential.

Scalability for Growing Plastic Manufacturing Units

Plastic and polymer plants often expand capacity by adding new machines, molds, or production lines. Electrical infrastructure must be able to support this growth without requiring a complete redesign.

PCC Panels for Plastic Industry are typically designed with future expansion in mind. Modular feeder arrangements, spare capacity, and structured layouts allow new equipment to be integrated smoothly. This scalability helps manufacturers grow operations while keeping electrical upgrades manageable and cost-effective.

Operational Safety and Compliance

High current levels and continuous operation increase electrical risks in plastic manufacturing environments. Overheating, insulation degradation, and arc faults pose safety concerns for both equipment and personnel.

By managing load distribution and fault isolation effectively, PCC Panels for Plastic Industry enhance operational safety. They support safer maintenance practices, controlled shutdowns, and compliance with industrial electrical standards. This is particularly important in plants operating around the clock with limited downtime windows.

Synchro Electricals designs PCC panels specifically for high-load industrial environments such as plastic and polymer manufacturing units. Their approach focuses on real production conditions—continuous operation, load variability, and expansion needs—ensuring PCC panels deliver reliable performance over the long term.

By aligning panel design with process demands, Synchro Electricals supports efficient energy management and stable operations in plastic manufacturing plants.

Conclusion

Plastic manufacturing units demand electrical systems that can handle high energy loads without compromising stability or safety. PCC Panels for Plastic Industry provide the control, reliability, and scalability required to support modern plastic processing operations.

By managing continuous loads, handling peak demand, and supporting both machines and auxiliary systems, PCC panels enable plastic manufacturers to operate efficiently and confidently. In an industry where power reliability directly affects productivity and quality, investing in the right PCC panels is a strategic decision, not just an electrical requirement.

FAQs

1. Why are PCC Panels for Plastic Industry essential in plastic manufacturing units?

Plastic manufacturing involves high, continuous, and fluctuating electrical loads. PCC Panels for Plastic Industry ensure stable power distribution, prevent overloads, and support uninterrupted production.

2. How do PCC panels handle high energy loads in plastic plants?

PCC panels are designed to manage continuous high current, peak load conditions, and simultaneous operation of multiple machines such as injection molding and extrusion equipment.

3. Can PCC Panels for Plastic Industry reduce production downtime?

Yes. By enabling selective isolation and structured power distribution, PCC panels limit the impact of electrical faults to specific sections instead of shutting down the entire plant.

4. Are PCC panels suitable for both machines and auxiliary systems in plastic plants?

Absolutely. PCC Panels for Plastic Industry support not only production machinery but also auxiliary systems like chillers, compressors, dryers, and ventilation units.

5. Do PCC panels support future expansion in plastic manufacturing units?

Yes. Well-designed PCC panels include spare capacity and modular feeder arrangements, allowing plastic plants to add new machines or lines without major electrical redesign.

Selective Coordination and Protection Scheme Design in PCC Panels for Industrial Facilities

Posted on by synchro_electricals

In modern manufacturing plants, electrical power systems operate under high fault levels, dense load concentration, and increasingly complex operating modes. As automation, large motor drives, and redundant supply arrangements become standard, the role of the Power Control Center (PCC) panel extends far beyond power distribution. It becomes the primary decision point for fault isolation, system stability, and personnel safety. Within this context, selective coordination is not an optional design enhancement—it is a fundamental requirement.

For technical professionals, understanding PCC Panel Protection Coordination begins with recognizing how faults behave in industrial power systems and how protection decisions propagate through the electrical network.

Fault Behavior in Industrial Power Distribution Systems

When a fault occurs within a manufacturing facility, fault current does not remain localized by default. It flows upstream through multiple protective devices, each capable of detecting the same abnormal condition. In an uncoordinated system, several breakers may respond simultaneously, causing widespread loss of supply even when the fault is limited to a single feeder.

At the PCC level, fault current magnitudes are typically at their highest due to proximity to transformers or utility incomers. This makes protection decisions at this point especially critical. A poorly coordinated response can result in upstream breaker operation, disconnecting entire production areas instead of isolating only the affected circuit.

Selective coordination exists to control this behavior intentionally.

Selective Coordination Defined at the PCC Level

Selective coordination is the deliberate arrangement of protective device characteristics so that, for any given fault, only the device closest to the fault operates while upstream devices remain closed. At the PCC panel, this coordination must extend across incomers, bus couplers, and outgoing feeders.

Unlike theoretical textbook systems, real manufacturing plants contain motors with high inrush currents, drives that distort current waveforms, and operating modes that alter available fault current. Protection coordination must therefore be dynamic in concept, even if implemented through static settings.

At its core, selective coordination is achieved by carefully managing time–current relationships between devices while ensuring fault clearing remains fast enough to protect equipment and personnel.

Why Coordination Becomes Complex in Manufacturing Facilities

Manufacturing plants introduce coordination challenges that are rarely present in simpler installations. Large induction motors demand protection that tolerates starting currents without nuisance tripping. Variable frequency drives introduce harmonics that influence sensing accuracy. Parallel feeders and redundant supplies alter fault current paths, making intuitive coordination unreliable.

Additionally, many plants operate with multiple power sources, such as grid supply supplemented by DG sets. Fault levels change significantly between operating modes, meaning coordination that works under grid supply may fail under generator operation if not designed holistically.

These realities make default breaker settings inadequate for industrial PCC panels.

Protection Scheme Design Philosophy in PCC Panels

Effective PCC Panel Protection Coordination begins with system-level thinking. The PCC panel is not designed in isolation; it must be coordinated with upstream utility protection and downstream MCCs and distribution boards.

Design starts with accurate short-circuit analysis under all operating conditions. From this, protective device ratings and interrupting capacities are selected. Coordination studies then align long-time, short-time, instantaneous, and earth-fault elements so discrimination is preserved across the fault current spectrum.

Electronic trip units and digital relays are essential in this process. Their adjustable characteristics allow fine-tuning of response times, enabling engineers to balance speed and selectivity rather than sacrificing one for the other.

Achieving Practical Protection Coordination

In practice, coordination is an iterative engineering process rather than a one-time calculation. Time–current curves are analyzed to verify separation between downstream and upstream devices. Settings are validated against motor starting conditions and transient load behavior. Coordination is then rechecked under alternate supply scenarios, such as DG operation or transformer outages.

The PCC panel must also account for mechanical interlocking and operational logic. Bus coupler behavior, incomer transfer schemes, and maintenance modes all influence protection response and must be considered during design.

Coordination that exists only on paper but fails under real operating conditions offers no practical value.

Advanced Coordination Techniques in Critical Plants

In high-reliability manufacturing environments, traditional time grading alone may not provide acceptable fault clearance times. Advanced techniques such as zone-selective interlocking allow downstream devices to trip instantaneously while upstream devices restrain, achieving both speed and selectivity.

Logic-based protection schemes further enhance coordination by adapting responses based on system configuration. These approaches are particularly valuable where fault energy reduction and arc-flash mitigation are design priorities.

Safety, Reliability, and Compliance Implications

Poor coordination increases arc-flash incident energy by delaying fault clearing at high current levels. Properly coordinated PCC panels reduce this risk while maintaining operational continuity. From a compliance perspective, insurers and safety auditors increasingly expect documented coordination studies as part of industrial electrical design.

For plant operators, the benefit is tangible: faults are isolated quickly, downtime is contained, and electrical assets experience less stress over their service life.

Engineering Perspective of Synchro Electricals

Synchro Electricals approaches PCC panel design as a protection engineering discipline rather than an assembly exercise. Coordination studies, operating mode analysis, and application-specific protection logic form the foundation of every PCC solution. This ensures that protection performance in the field matches design intent, even under complex industrial conditions.

Conclusion

Selective coordination is the difference between controlled fault isolation and widespread production disruption. In manufacturing plants, where electrical complexity and uptime requirements continue to rise, PCC Panel Protection Coordination must be treated as a core design responsibility.

By applying rigorous protection scheme design at the PCC level, industrial facilities can achieve safer operation, higher reliability, and predictable system behavior under fault conditions. Coordination is not a setting—it is an engineered outcome.

FAQs

1. What is selective coordination in a PCC panel?

Selective coordination is the intentional grading of protective devices so that only the breaker nearest to a fault operates, while upstream devices remain closed.

2. Why is selective coordination critical in manufacturing plants?

Manufacturing facilities have high fault levels and sensitive production loads; poor coordination can cause plant-wide shutdowns from localized faults.

3. Can thermal-magnetic breakers achieve proper coordination?

In most industrial systems, no. Adjustable electronic trip units or digital relays are required to manage complex fault and load conditions accurately.

4. Does protection coordination change during DG operation?

Yes. DG operation alters fault current levels and direction, requiring coordination to be validated under both grid and generator modes.

5. How does protection coordination affect arc-flash safety?

Proper coordination reduces fault clearing time at higher current levels, directly lowering arc-flash incident energy and improving personnel safety.



PCC Panels for Data Centers: Ensuring Stable Power for Mission-Critical IT Loads

Posted on by synchro_electricals

Data centers are among the most power-sensitive environments in modern infrastructure. From cloud computing and financial transactions to healthcare data and enterprise operations, even a brief power disturbance can result in service outages, data corruption, and significant financial loss. In such mission-critical facilities, power stability is not just an operational requirement—it is a core design principle.

At the center of this power architecture lies a crucial component: PCC Panels for Data Centers. Power Control Center (PCC) panels act as the primary interface between incoming power sources and downstream IT and mechanical loads, ensuring controlled distribution, fault protection, and long-term reliability. When engineered correctly, PCC panels form the backbone of stable, resilient data center power systems.

Synchro Electricals designs PCC panels specifically for high-availability environments, where electrical reliability directly impacts business continuity.

The Power Reality Inside Modern Data Centers

Data centers operate under constant, high electrical demand. Servers, storage arrays, networking equipment, cooling systems, and backup infrastructure run simultaneously—often at near-continuous load. Unlike conventional facilities, data centers experience minimal load fluctuation tolerance; voltage dips, phase imbalance, or transient faults can trigger shutdowns or damage sensitive equipment.

Additionally, data centers rely on multiple power sources:

  • Utility grid supply
  • Backup DG sets
  • UPS systems and battery banks
  • Renewable energy integration in some facilities

Managing power flow between these sources while maintaining absolute stability requires a structured and centralized control approach—this is where PCC panels become indispensable.

Why Data Centers Cannot Afford Power Instability

Power instability in data centers has consequences far beyond simple downtime. Common risks include:

  • Unplanned server shutdowns and reboot cycles
  • UPS stress and reduced battery life
  • Failure of cooling systems leading to thermal events
  • Damage to sensitive IT hardware
  • SLA violations and reputational impact

Unlike industrial plants, where processes may restart, data centers must maintain continuous, clean power delivery. Even milliseconds of disruption can cascade into major operational incidents. PCC Panels for Data Centers are designed to eliminate these risks by ensuring controlled, protected, and monitored power distribution at all times.

What Role PCC Panels Play in Data Center Power Architecture

A Power Control Center (PCC) panel serves as the main low-voltage distribution and control hub within a data center. Positioned downstream of transformers and upstream of critical loads, it manages power flow to UPS systems, cooling infrastructure, and auxiliary services.

In data center environments, PCC panels perform several critical functions:

  • Distributing power evenly across multiple feeders
  • Protecting systems from overloads, short circuits, and faults
  • Monitoring electrical parameters in real time
  • Supporting redundancy and failover strategies
  • Enabling safe isolation for maintenance

Rather than acting as a simple distribution board, the PCC panel becomes a control layer that ensures power predictability and resilience.

How PCC Panels Ensure Stability for Mission-Critical IT Loads

The stability of IT loads depends on how effectively upstream power disturbances are absorbed and controlled. Well-designed PCC panels contribute to this stability in several ways.

First, they ensure balanced load distribution across phases, preventing overheating and voltage imbalance that can affect IT equipment. Second, they provide fast fault isolation, ensuring that localized issues do not propagate across the facility. Third, integrated monitoring allows operators to detect abnormal conditions early, enabling preventive action rather than reactive intervention.

In facilities with N+1 or 2N redundancy, PCC panels also support seamless coordination between power paths—ensuring that failover occurs smoothly without affecting downstream systems.

Engineering Capabilities That Matter in Data Centers

In data center applications, PCC panel design is driven by reliability, precision, and scalability rather than basic distribution requirements. Key engineering aspects include:

  • High fault-withstand capability to handle short-circuit levels typical of large data centers
  • Advanced protection relays for overcurrent, earth fault, and feeder protection
  • Segregated busbar and feeder sections to improve safety and maintainability
  • Accurate metering and monitoring for voltage, current, power factor, and energy usage
  • SCADA and BMS integration for centralized monitoring and control
  • Modular construction allowing future expansion without major redesign

These capabilities ensure that PCC panels support not just current capacity, but long-term growth and evolving load profiles.

Where PCC Panels Are Used Within Data Centers

PCC panels are deployed across multiple layers of data center infrastructure, including:

  • Main LT distribution from transformers
  • Power supply to UPS and battery systems
  • Distribution to cooling plants and CRAC units
  • Auxiliary services such as lighting, fire systems, and control rooms
  • Interface panels supporting redundancy and power zoning

At each level, the PCC panel ensures controlled power flow, fault isolation, and operational visibility.

Operational Benefits for Data Center Owners and Operators

Implementing well-engineered PCC Panels for Data Centers delivers measurable benefits:

  • High power availability, supporting 24/7 operations
  • Reduced risk of downtime through fast fault isolation
  • Improved energy management via real-time monitoring
  • Extended equipment life due to stable electrical conditions
  • Simplified maintenance with safe isolation and clear diagnostics
  • Scalable infrastructure to support future capacity growth

These benefits directly contribute to lower operational risk and higher service reliability.

Why Synchro Electricals for Data Center PCC Panels

Data center power systems demand more than standard electrical panels. They require engineered solutions that align with redundancy philosophies, uptime targets, and long-term reliability goals.

Synchro Electricals designs PCC panels with a system-level understanding of data center operations. Each solution is tailored to fault levels, load profiles, and monitoring requirements specific to mission-critical IT environments. Emphasis is placed on build quality, protection coordination, and seamless integration with facility management systems.

This approach ensures that PCC panels perform reliably under continuous load and evolving operational demands.

Conclusion

In data centers, power stability is the foundation of digital reliability. PCC Panels for Data Centers play a central role in ensuring that mission-critical IT loads receive clean, controlled, and uninterrupted power—regardless of upstream conditions.

By deploying robust, well-engineered PCC panels, data center operators can reduce operational risk, support high availability targets, and build power infrastructure that is resilient, scalable, and future-ready.

FAQs

1. Why are PCC panels critical in data centers?

They ensure stable power distribution, fast fault isolation, and continuous operation for mission-critical IT loads.

2. How do PCC panels support redundancy in data centers?

They enable controlled power paths and seamless coordination between redundant sources and feeders.

3. Can PCC panels integrate with BMS or SCADA systems?

Yes. Modern PCC panels support full integration for real-time monitoring and alarms.

4. Are PCC panels scalable for data center expansion?

Absolutely. Modular designs allow capacity expansion without major system disruption.

5. What makes PCC panels different for data centers compared to industrial plants?

Data center PCC panels prioritize reliability, monitoring precision, and continuous uptime over process-driven load variation.

Power Control Centers (PCC) for Automotive Manufacturing: Ensuring Stable Production Lines

Posted on by synchro_electricals

In the automotive industry, precision, consistency, and efficiency are non-negotiable. Every robotic arm, conveyor belt, and testing station in a production line depends on a reliable electrical backbone to maintain continuous operation. Even a brief power interruption can bring the entire assembly process to a halt — leading to costly downtime, production losses, and missed delivery schedules.

That’s why PCC Panels for the Automotive Industry play such a vital role. Acting as the central nerve of electrical distribution within the plant, these panels ensure stable power flow, safe load management, and seamless control across all sections of production.

Synchro Electricals, a trusted manufacturer of industrial-grade control and distribution systems, designs Power Control Centers (PCC Panels) engineered to deliver reliability, precision, and protection in demanding automotive environments.

Why Power Stability is Critical in Automotive Manufacturing

Automotive plants operate as interconnected ecosystems of high-power machinery — paint shops, robotic welding cells, assembly conveyors, stamping presses, and precision testing equipment. The electrical load across such diverse systems fluctuates continuously.

Without effective control, this variability can cause:

  • Voltage instability affecting sensitive equipment performance

  • Overloading and circuit tripping during peak demand

  • Unscheduled downtime due to electrical faults

  • Higher maintenance costs and energy losses

A well-designed PCC panel mitigates these risks by providing centralized control, intelligent load management, and integrated protection. It ensures that power is always distributed efficiently and safely — keeping production steady and predictable.

What is a Power Control Center (PCC) Panel?

A Power Control Center is the main distribution hub for power supply in industrial environments. It houses circuit breakers, relays, contactors, metering units, and control logic components that manage the flow of electricity to various plant sections.

For automotive facilities, PCC panels:

  • Distribute power from transformers or generators to production equipment

  • Monitor electrical parameters like voltage, current, and frequency in real time

  • Protect systems against overload, short circuits, and phase imbalance

  • Ensure safe startup and shutdown of heavy machinery

In essence, PCC panels form the foundation of a plant’s electrical infrastructure — enabling seamless coordination between production lines and power sources.

The Role of PCC Panels in Automotive Production Lines

Automotive manufacturing involves a complex series of synchronized operations, from metal stamping and welding to painting, assembly, and inspection. Each stage requires high reliability and precision. PCC panels ensure:

  • Stable Power Supply: Maintains consistent voltage levels, preventing machine downtime.

  • Load Optimization: Automatically distributes load between feeders to avoid overloading.

  • Process Reliability: Protects automation equipment from fluctuations and faults.

  • Operational Safety: Integrates circuit protection and isolation mechanisms to prevent accidents.

  • Centralized Control: Simplifies management of multiple power circuits across large plants.

For automotive plants running 24/7 operations, this stability ensures that production targets are met without compromising safety or energy efficiency.

Challenges in Automotive Power Distribution

The automotive industry faces unique power management challenges due to high levels of automation and simultaneous operation of multiple high-load systems. Common issues include:

  • Variable Load Demand: Welding machines and robotic systems cause frequent load changes.

  • Harmonic Distortion: Non-linear loads introduce electrical noise that affects sensitive equipment.

  • Power Factor Degradation: Heavy machinery can reduce power factor, increasing energy bills.

  • Limited Downtime Windows: Maintenance opportunities are minimal, demanding reliable equipment.

PCC panels address these issues by providing intelligent protection, real-time monitoring, and smooth load control, creating a stable and resilient electrical network.

Key Features of Synchro Electricals’ PCC Panels

Synchro Electricals designs its PCC Panels for the Automotive Industry with precision engineering and advanced safety features, ensuring long-term performance under tough industrial conditions.

Key Features Include:

  • Modular Construction: Allows flexible expansion and easy maintenance.

  • High-Quality Switchgear: Equipped with ACBs, MCCBs, and contactors rated for industrial-grade loads.

  • Microprocessor-Based Monitoring: Real-time display of electrical parameters for accurate diagnostics.

  • Overload & Short-Circuit Protection: Safeguards critical systems from electrical faults.

  • SCADA / PLC Integration: Enables remote monitoring and control for smart manufacturing environments.

  • High Fault Withstand Capacity: Panels designed to handle fault levels up to 65kA or more.

  • Compliant with IEC & IS Standards: Ensures operational safety and reliability in global manufacturing facilities.

Each panel undergoes rigorous testing to meet the exacting standards required for continuous automotive production environments.

Applications of PCC Panels in Automotive Manufacturing

Synchro Electricals’ PCC Panels are deployed across various stages of automotive production, including:

  • Welding and Body Shops: Supplying stable power to high-load robotic welding machines.

  • Paint Shops: Maintaining balanced voltage for pumps, blowers, and curing ovens.

  • Assembly Lines: Powering conveyors, fastening tools, and inspection systems.

  • Testing Facilities: Providing precise control for sensitive measurement instruments.

  • Utility Sections: Managing HVAC, lighting, and air compression systems.

These applications highlight how PCC panels ensure reliable power management throughout the entire production ecosystem.

Benefits of Using PCC Panels in Automotive Facilities

Implementing Synchro Electricals’ PCC panels brings tangible advantages for both operational and financial performance:

  • Reduced Downtime: Intelligent load control and protection minimize unplanned stoppages.

  • Enhanced Productivity: Reliable power ensures maximum machine uptime.

  • Energy Efficiency: Optimized distribution lowers energy wastage and operating costs.

  • Improved Safety: Integrated protection mechanisms safeguard personnel and equipment.

  • Future-Ready Infrastructure: Modular design supports plant expansion and automation upgrades.

In an industry where every second of production counts, PCC panels are an investment in stability, safety, and efficiency.

Why Choose Synchro Electricals

With decades of experience in electrical power distribution and control systems, Synchro Electricals has established itself as a trusted partner for leading automotive manufacturers.

What sets Synchro apart:

  • Proven expertise in industrial-grade power management solutions.

  • Panels engineered to meet automotive manufacturing standards.

  • Custom-built configurations for plant-specific load requirements.

  • Comprehensive after-sales support and maintenance assistance.

By choosing Synchro Electricals, automotive manufacturers secure more than a product—they gain a dependable energy partner committed to ensuring uninterrupted production.

Conclusion

In the fast-paced world of automotive manufacturing, power reliability defines production efficiency. PCC Panels for the Automotive Industry ensure that complex assembly lines and automated systems operate seamlessly, with safety and precision at every stage.

With Synchro Electricals’ Power Control Centers, manufacturers can achieve stable power distribution, minimize downtime, and maintain continuous production—empowering the industry to drive performance, reliability, and innovation forward.

FAQs

What is a PCC Panel used for in automotive manufacturing?

A PCC Panel distributes and controls electrical power across production equipment, ensuring safe and efficient operation of machinery and automation systems.

Why are PCC Panels important for automotive plants?

They maintain voltage stability, prevent overloads, and safeguard production lines against electrical faults.

Can PCC Panels integrate with automation systems?

Yes, Synchro Electricals’ PCC Panels are SCADA/PLC compatible, allowing seamless integration into automated plant networks.

Are Synchro Electricals’ PCC Panels customizable?

Absolutely. Panels can be designed based on plant layout, load requirements, and capacity needs.

How do PCC Panels improve energy efficiency?

By optimizing load distribution and monitoring power quality, they reduce wastage and improve overall plant efficiency.

How PCC Panels Are Evolving with Smart Metering and IoT Integration in Industrial Power Systems

Posted on by synchro_electricals

In today’s rapidly digitizing industrial landscape, Power Control Center (PCC) panels are no longer just about circuit protection and load management—they are becoming intelligent, connected systems. With the advent of smart metering, IoT integration, and real-time monitoring, modern PCC panels are revolutionizing how industries manage energy. In this blog, we’ll explore how PCC panel manufacturers are adapting to the digital era and how these innovations are reshaping industrial power systems.

What is a PCC Panel and Why is it Critical?

A PCC panel or Power Control Center panel is an essential component of any industrial electrical setup. It manages power distribution from the transformer to various load points, protecting machinery, equipment, and infrastructure. Industries such as manufacturing, steel, automotive, textile, oil & gas, and large commercial units depend on industrial PCC panels for smooth, safe operations.

Whether it’s an LT PCC panel, MCC PCC panel, or an integrated PCC MCC control panel, these systems are responsible for:

  • Distributing power across all operational units

  • Monitoring voltage, current, and power factor

  • Protecting systems against overload, short circuits, and surges

  • Ensuring uninterrupted production cycles

The Shift: Traditional PCC to Smart PCC Panels

In the past, electrical PCC panels were largely analog—relying on manual operations, discrete wiring, and offline monitoring. Today, industries demand real-time data, predictive maintenance, and remote control—this is where IoT and smart metering come in.

Smart Metering in PCC Panels

Smart metering technology allows for precise energy monitoring and automated reporting. Integrated into modern PCC panels, smart meters offer:

  • Real-time power usage tracking

  • Load balancing analytics

  • Detection of harmonic distortion and energy loss

  • Transparent billing and energy audit reports

This not only ensures operational efficiency but helps industries save on energy costs and reduce downtime.

IoT Integration: The Industrial Game-Changer

IoT-enabled PCC panels take smart functionality to the next level. Using sensors, cloud-based dashboards, and machine learning, these panels can:

  • Predict equipment failure before it happens

  • Monitor temperature, voltage, and current continuously

  • Automate switching and power flow based on real-time demand

  • Integrate with SCADA or ERP systems for centralized control

IoT transforms a traditional PCC electrical panel into a self-monitoring, self-reporting unit that enhances both safety and performance.

Advantages of Smart PCC Panels for Industrial Applications

With smart metering and IoT capabilities, PCC panels for industrial applications now offer a broad range of benefits:

  • Reduced energy wastage through accurate load management

  • Improved uptime with predictive maintenance alerts

  • Remote access for monitoring and diagnostics from any location

  • Data-driven decisions for energy optimization and cost control

  • Enhanced safety through early fault detection and alerts

Common Industries Benefiting from Smart PCC Panels

Smart PCC panels are becoming the norm in sectors such as:

  • Large commercial units with variable load conditions

  • Pharmaceuticals requiring clean, uninterrupted power

  • Food processing plants where uptime is critical

  • Steel and heavy machinery operations needing advanced protection

  • Renewable energy sectors integrating grid feedback systems

What Makes Synchro Electricals a Leading PCC Panel Manufacturer?

At Synchro Electricals, we stay ahead of the curve by designing smart PCC panels that are tailored for modern industrial needs. Here’s what sets us apart:

Certified Quality

Our panels meet all necessary IEC and IS standards, ensuring safety, reliability, and long-term performance.

Integrated Smart Solutions

We offer advanced smart metering and IoT-enabled PCC panels, compatible with modern SCADA systems and cloud platforms.

Custom-Engineered Panels

From LT PCC panels to PCC MCC combinations, every panel is custom-designed to meet your plant’s unique electrical load and power flow needs.

Industrial-Grade Components

We use top-tier components and proven wiring practices, ensuring long life, minimal maintenance, and low energy loss.

Proudly Made in India

As a trusted PCC panel manufacturer in India, we combine innovation with local expertise—delivering premium-quality panels across diverse sectors.,

The Future of Power Control: Smarter, Safer, and More Connected

The future of industrial power control lies in intelligent, data-driven systems. As energy efficiency and automation become key business drivers, industries that adopt smart PCC panels with IoT and metering will gain a competitive edge in both performance and sustainability.

If you’re planning an upgrade or new installation, trust Synchro Electricals—your reliable partner in building the next generation of industrial PCC panels.

FAQs

1. What is a PCC panel in electrical systems?

A PCC (Power Control Center) panel is used to distribute power to various loads and equipment in an industrial or commercial setup. It controls and monitors the main power source with built-in protection features.

2. How is IoT used in PCC panels?

IoT-enabled PCC panels can monitor voltage, current, energy usage, fault detection, and temperature in real-time via cloud-connected sensors, enabling predictive maintenance and remote diagnostics.

3. What are the benefits of smart metering in PCC panels?

Smart metering provides accurate energy monitoring, power factor correction, load optimization, and detailed analytics—helping businesses reduce energy costs and improve system efficiency.

4. Can existing PCC panels be upgraded for IoT integration?

Yes, legacy PCC panels can often be retrofitted with IoT modules, smart meters, and communication interfaces like Modbus, Ethernet, or Wi-Fi for real-time monitoring.

5. Why choose a smart PCC panel for industrial power management?

Smart PCC panels reduce downtime, improve energy efficiency, enable data-driven decisions, and offer remote access—making them ideal for Industry 4.0-ready facilities.

6. What are the typical applications of PCC panels?

PCC panels are used in manufacturing plants, refineries, data centers, commercial buildings, hospitals, and other facilities requiring robust power distribution and protection.

What is a PCC Panel? Understanding Its Role in Industrial Power Management

Posted on by synchro_electricals

1. Introduction

A Power Control Center (PCC) panel is an essential component of industrial electrical systems, responsible for efficiently managing and distributing power. These panels regulate electrical loads, ensure operational safety, and optimize energy usage across various industries.

PCC panels are designed to handle high-voltage power distribution from transformers to machines, ensuring a steady and uninterrupted power supply. They are widely used in manufacturing plants, power stations, and commercial buildings to enhance efficiency and protect electrical equipment from potential failures and fluctuations.

2. Understanding PCC Panels

PCC stands for Power Control Center, acting as a centralized unit for power distribution within an industrial setup. These panels consist of multiple circuit breakers, relays, and monitoring devices that help maintain a safe and effective power supply.

PCC panels can be customized based on industry requirements, offering fault detection and prevention features to safeguard expensive industrial equipment. By preventing overloading, short circuits, and power surges, PCC panels play a critical role in electrical safety and efficiency.

3. Key Features of a PCC Panel

A PCC panel offers several important features that make it an essential part of industrial power management:

  • Load Distribution Efficiency: Ensures balanced power distribution, preventing overloads.
  • Protection Mechanisms: Equipped with circuit breakers, fuses, and relays to protect against short circuits and electrical faults.
  • Control and Monitoring Capabilities: Integrated with meters and control switches for real-time power monitoring and control.

These features collectively enhance the safety, reliability, and efficiency of industrial electrical systems.

   4. Types of PCC Panels

PCC (Power Control Center) panels come in various types, depending on their design, configuration, and industrial application. Understanding these types helps businesses choose the most suitable option for their operational requirements.

1. Indoor vs. Outdoor PCC Panels
 Based on the installation environment, PCC panels can be categorized as indoor or outdoor types.

  • Indoor PCC Panels are installed within controlled environments such as control rooms or factory floors. These are usually shielded from dust, moisture, and temperature extremes.
  • Outdoor PCC Panels are designed to withstand harsh environmental conditions. They are enclosed in weatherproof, rust-resistant cabinets and often meet IP65 or higher protection ratings, ensuring safety and durability in outdoor settings such as power plants, substations, and oil refineries.

2. Fixed Type vs. Draw-Out Type Panels

  • Fixed Type PCC Panels have components permanently mounted inside the panel. Maintenance or replacement requires a complete system shutdown, making them suitable for less critical operations with infrequent servicing.
  • Draw-Out Type PCC Panels feature modular compartments where individual units (breakers, relays, meters) can be withdrawn without disturbing the rest of the panel. This design allows for easy maintenance, faster troubleshooting, and enhanced safety. These panels are ideal for industries with high uptime demands.

Choosing the right type of PCC panel is crucial for maximizing safety, operational efficiency, and ease of maintenance in industrial power systems.

5. Components of a PCC Panel

A PCC panel consists of various essential components that ensure smooth operation:

  • Circuit Breakers and Contactors: Facilitate switching and protection against electrical faults.
  • Busbars and Relays: Busbars transmit electrical power, while relays detect faults and trigger safety measures.
  • Control Switches and Meters: Used to monitor voltage, current, and power flow.

Each component contributes to maintaining stability and safety in industrial power management.

6. How a PCC Panel Works in an Industrial Setup

A PCC panel ensures the efficient distribution of electricity from transformers or generators to industrial equipment.

  • Role in Power Distribution: PCC panels distribute power efficiently across different facility sections.
  • Integration with Transformers and Generators: Works alongside transformers, generators, and switchgear to maintain a stable power supply.

By offering centralized control, PCC panels help prevent electrical faults and ensure optimized power usage.

7. Benefits of Using a PCC Panel

Industries gain several advantages by integrating PCC panels into their electrical infrastructure:

  • Safety and Protection: Prevents short circuits, overloads, and voltage fluctuations.
  • Load Optimization: Distributes power evenly to avoid overloading or underloading equipment.
  • Energy Efficiency: Helps reduce energy costs and minimize wastage through real-time monitoring.

These benefits enhance productivity, workplace safety, and cost-effectiveness.

8. PCC Panels vs. Traditional Power Distribution Systems

Unlike traditional power distribution systems that rely on direct transformer connections, PCC panels provide a centralized and automated approach.

  • Differences in Operation: PCC panels offer real-time monitoring, fault detection, and protection, while traditional systems lack these capabilities.
  • Cost-Benefit Analysis: Though requiring an initial investment, PCC panels reduce long-term maintenance and downtime costs.
  • Reliability: PCC panels ensure steady and controlled power supply, reducing voltage drops, power surges, and failures.

9. Applications of PCC Panels in Various Industries

PCC panels are widely used across different industries:

  • Manufacturing Plants: Controls power supply to heavy machinery and robotic systems.
  • Power Generation Units: Manages power flow from generators and transformers.
  • Oil and Gas Industries: Ensures continuous power supply to refineries, drilling rigs, and offshore platforms.

10. Installation and Commissioning of PCC Panels

Proper installation and commissioning are crucial for the performance of a PCC panel:

  • Site Preparation: Ensures adequate space and ventilation.
  • Wiring and Cabling Requirements: Connects circuit breakers, busbars, and control switches according to load demands.
  • Testing Before Operation: Includes insulation resistance tests, voltage drop tests, and functionality checks.

11. Maintenance and Troubleshooting of PCC Panels

Regular maintenance ensures a PCC panel operates efficiently:

  • Routine Inspections: Checks for loose connections, overheating, and component wear.
  • Common Issues and Fixes: Addresses voltage fluctuations, circuit breaker trips, and relay malfunctions.
  • Periodic Servicing: Prevents unexpected breakdowns.

12. Safety Measures While Handling PCC Panels

PCC panels handle high-voltage power, making safety a top priority:

  • PPE Requirements: Use of insulated gloves, safety goggles, and rubber-soled shoes.
  • Operator Guidelines: Following lockout/tagout (LOTO) procedures to prevent accidental energization.
  • Emergency Shutdown Procedures: Quick isolation of power in case of faults.

13. Advancements in PCC Panel Technology

Technological advancements are making PCC panels smarter and more efficient:

  • Smart PCC Panels: Integrated with digital meters and automated controls.
  • IoT Integration: Enables remote power monitoring and fault detection.
  • AI-Driven Predictive Maintenance: Uses AI to predict failures and reduce downtime.

14. Cost Considerations for PCC Panels

The cost of PCC panels depends on several factors:

  • Initial Investment vs. Long-Term Benefits: High upfront costs but lower maintenance expenses.
  • Pricing Factors: Includes size, material, automation features, and remote monitoring capabilities.
  • ROI Assessment: Industries can calculate ROI based on energy savings and improved productivity.

15. Conclusion

PCC panels are indispensable for industrial power management, providing efficient power distribution, safety, and energy optimization. Their applications span multiple industries, ensuring reliable operations and cost savings.

With the integration of smart technology, IoT, and AI, PCC panels are evolving to meet modern industrial demands, playing an even bigger role in energy efficiency and automation.

Synchroelectricals – A Trusted Manufacturer of PCC Panels

Synchroelectricals specializes in manufacturing high-quality Power Control Center (PCC) panels, catering to industrial and commercial power distribution needs. Their advanced panels provide superior efficiency, safety, and durability, making them a preferred choice for businesses looking to optimize their electrical systems.

FAQs

What is the main function of a PCC panel?

 A PCC panel distributes power, protects electrical systems, and ensures operational efficiency.

How does a PCC panel differ from an MCC panel?

 A PCC panel manages overall power distribution, while an MCC panel controls electric motors.

Can a PCC panel improve energy efficiency?

Yes, it optimizes power usage and improves power factor correction.

What industries use PCC panels?

Manufacturing, power generation, refineries, and commercial buildings.

What safety precautions should be followed when handling PCC panels?

Use PPE, follow LOTO procedures, and ensure proper grounding to prevent electrical hazards.

Welcome to Synchro Electricals

We provide trusted, high-performance electrical solutions tailored for every industry.

Apply For Job
