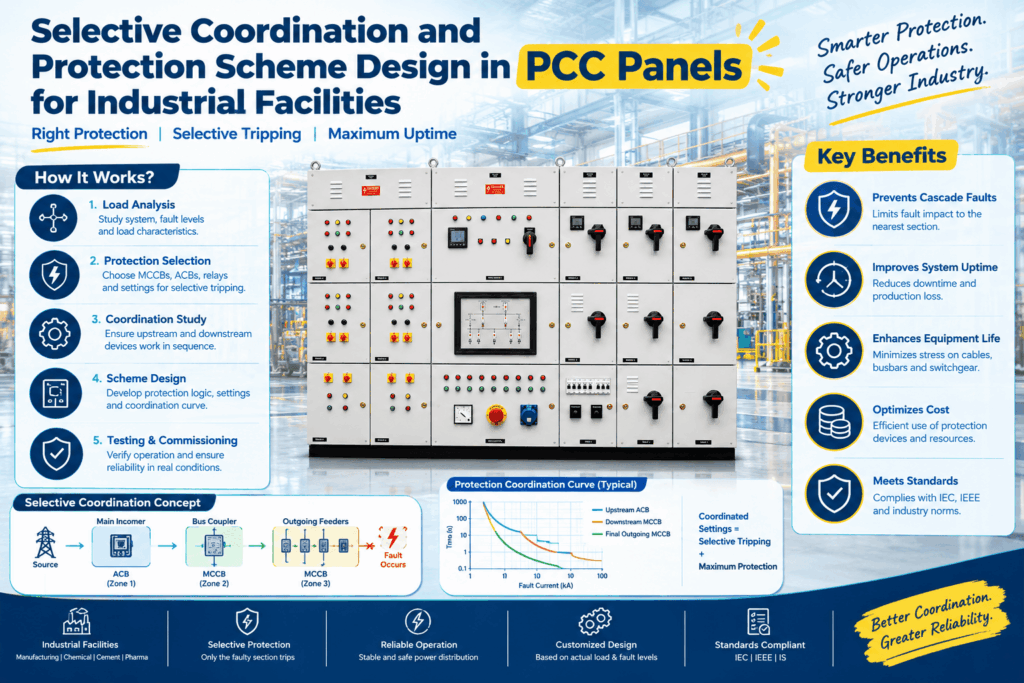

In modern manufacturing plants, electrical power systems operate under high fault levels, dense load concentration, and increasingly complex operating modes. As automation, large motor drives, and redundant supply arrangements become standard, the role of the Power Control Center (PCC) panel extends far beyond power distribution. It becomes the primary decision point for fault isolation, system stability, and personnel safety. Within this context, selective coordination is not an optional design enhancement—it is a fundamental requirement.
For technical professionals, understanding PCC Panel Protection Coordination begins with recognizing how faults behave in industrial power systems and how protection decisions propagate through the electrical network.
Fault Behavior in Industrial Power Distribution Systems
When a fault occurs within a manufacturing facility, fault current does not remain localized by default. It flows upstream through multiple protective devices, each capable of detecting the same abnormal condition. In an uncoordinated system, several breakers may respond simultaneously, causing widespread loss of supply even when the fault is limited to a single feeder.
At the PCC level, fault current magnitudes are typically at their highest due to proximity to transformers or utility incomers. This makes protection decisions at this point especially critical. A poorly coordinated response can result in upstream breaker operation, disconnecting entire production areas instead of isolating only the affected circuit.
Selective coordination exists to control this behavior intentionally.
Selective Coordination Defined at the PCC Level
Selective coordination is the deliberate arrangement of protective device characteristics so that, for any given fault, only the device closest to the fault operates while upstream devices remain closed. At the PCC panel, this coordination must extend across incomers, bus couplers, and outgoing feeders.
Unlike theoretical textbook systems, real manufacturing plants contain motors with high inrush currents, drives that distort current waveforms, and operating modes that alter available fault current. Protection coordination must therefore be dynamic in concept, even if implemented through static settings.
At its core, selective coordination is achieved by carefully managing time–current relationships between devices while ensuring fault clearing remains fast enough to protect equipment and personnel.
Why Coordination Becomes Complex in Manufacturing Facilities
Manufacturing plants introduce coordination challenges that are rarely present in simpler installations. Large induction motors demand protection that tolerates starting currents without nuisance tripping. Variable frequency drives introduce harmonics that influence sensing accuracy. Parallel feeders and redundant supplies alter fault current paths, making intuitive coordination unreliable.
Additionally, many plants operate with multiple power sources, such as grid supply supplemented by DG sets. Fault levels change significantly between operating modes, meaning coordination that works under grid supply may fail under generator operation if not designed holistically.
These realities make default breaker settings inadequate for industrial PCC panels.
Protection Scheme Design Philosophy in PCC Panels
Effective PCC Panel Protection Coordination begins with system-level thinking. The PCC panel is not designed in isolation; it must be coordinated with upstream utility protection and downstream MCCs and distribution boards.
Design starts with accurate short-circuit analysis under all operating conditions. From this, protective device ratings and interrupting capacities are selected. Coordination studies then align long-time, short-time, instantaneous, and earth-fault elements so discrimination is preserved across the fault current spectrum.
Electronic trip units and digital relays are essential in this process. Their adjustable characteristics allow fine-tuning of response times, enabling engineers to balance speed and selectivity rather than sacrificing one for the other.
Achieving Practical Protection Coordination
In practice, coordination is an iterative engineering process rather than a one-time calculation. Time–current curves are analyzed to verify separation between downstream and upstream devices. Settings are validated against motor starting conditions and transient load behavior. Coordination is then rechecked under alternate supply scenarios, such as DG operation or transformer outages.
The PCC panel must also account for mechanical interlocking and operational logic. Bus coupler behavior, incomer transfer schemes, and maintenance modes all influence protection response and must be considered during design.
Coordination that exists only on paper but fails under real operating conditions offers no practical value.
Advanced Coordination Techniques in Critical Plants
In high-reliability manufacturing environments, traditional time grading alone may not provide acceptable fault clearance times. Advanced techniques such as zone-selective interlocking allow downstream devices to trip instantaneously while upstream devices restrain, achieving both speed and selectivity.
Logic-based protection schemes further enhance coordination by adapting responses based on system configuration. These approaches are particularly valuable where fault energy reduction and arc-flash mitigation are design priorities.
Safety, Reliability, and Compliance Implications
Poor coordination increases arc-flash incident energy by delaying fault clearing at high current levels. Properly coordinated PCC panels reduce this risk while maintaining operational continuity. From a compliance perspective, insurers and safety auditors increasingly expect documented coordination studies as part of industrial electrical design.
For plant operators, the benefit is tangible: faults are isolated quickly, downtime is contained, and electrical assets experience less stress over their service life.
Engineering Perspective of Synchro Electricals
Synchro Electricals approaches PCC panel design as a protection engineering discipline rather than an assembly exercise. Coordination studies, operating mode analysis, and application-specific protection logic form the foundation of every PCC solution. This ensures that protection performance in the field matches design intent, even under complex industrial conditions.
Conclusion
Selective coordination is the difference between controlled fault isolation and widespread production disruption. In manufacturing plants, where electrical complexity and uptime requirements continue to rise, PCC Panel Protection Coordination must be treated as a core design responsibility.
By applying rigorous protection scheme design at the PCC level, industrial facilities can achieve safer operation, higher reliability, and predictable system behavior under fault conditions. Coordination is not a setting—it is an engineered outcome.
Frequently Asked Questions
1. What is selective coordination in a PCC panel?
Selective coordination is the process of coordinating protective devices so that, where practical, the protective device closest to a fault operates first while upstream devices remain operational. This helps limit the interruption to the affected part of the electrical system.
2. Why is selective coordination important in manufacturing plants?
Manufacturing facilities often have multiple interconnected electrical loads and production systems. Proper coordination can help prevent a localized electrical fault from unnecessarily interrupting larger sections of the plant, supporting system availability and operational continuity.
3. Can thermal-magnetic circuit breakers achieve selective coordination?
Yes, thermal-magnetic breakers can achieve selective coordination in certain system configurations and within specific current ranges. However, achieving coordination across a complex industrial distribution system may require adjustable electronic trip units, current-limiting devices, protective relays, or other appropriately selected equipment. Coordination should be verified using manufacturer data and a protection study.
4. Does protection coordination change when a facility operates on diesel generators?
Yes. Generator operation can change available fault current, source impedance, and fault-current contribution compared with utility operation. Facilities with grid and generator operating modes should evaluate protection coordination for each relevant operating condition.
5. How does protection coordination affect arc-flash safety?
Protection coordination can influence the time required to clear an electrical fault, which is one factor affecting arc-flash incident energy. Faster fault clearing can reduce incident energy in applicable cases, but arc-flash risk also depends on available fault current, equipment configuration, working distance, protective-device characteristics, and other factors.
6. How is selective coordination verified in a PCC panel?
Selective coordination is typically evaluated through a protection coordination study using system data, protective-device characteristics, time-current curves, and manufacturer coordination tables. The study should consider the relevant operating modes and fault conditions.
7. What information is required for a protection coordination study?
Typical information includes the single-line diagram, transformer ratings and impedance, utility fault level, generator details, cable sizes and lengths, circuit-breaker ratings, protective-device settings, motor data, and operating configurations.
8. Can selective coordination be maintained in systems with multiple power sources?
It can be designed for systems with multiple sources, but each operating mode may produce different fault-current conditions. Utility, generator, parallel-source, and other configurations should be evaluated to confirm that the selected protection strategy remains appropriate.
9. What are the benefits of selective coordination in a PCC panel?
Proper selective coordination can help limit outages to the affected circuit, improve electrical system continuity, simplify fault isolation, and reduce unnecessary tripping of upstream protective devices.
10. Can protection settings in a PCC panel be adjusted after installation?
Many PCC systems use adjustable circuit-breaker trip units or protective relays that allow settings to be configured according to the completed protection study. Any changes should be reviewed and implemented by qualified personnel to maintain protection coordination and equipment safety.
