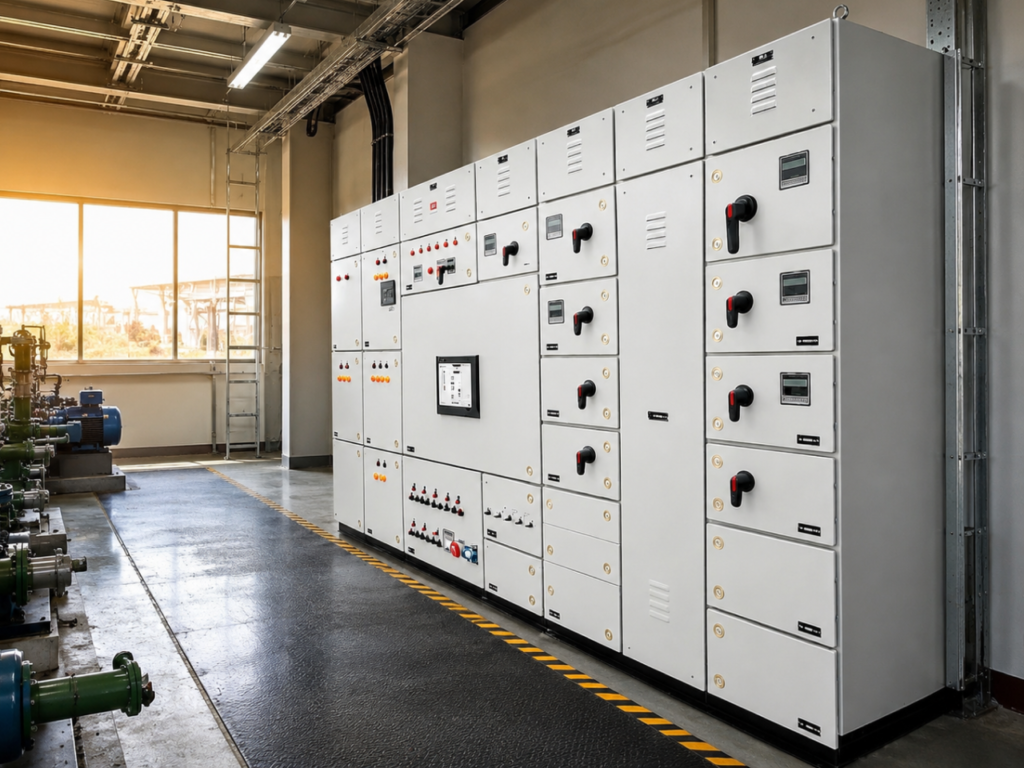

A Power Control Center (PCC) is a crucial electrical distribution panel in industrial and commercial settings. Its primary function is to distribute electrical power to various loads within a facility while providing control and protection. Below are details about the PCC panel, including its construction, applications, and typical ratings:
The PCC panel is housed in a robust and weather-resistant enclosure. The enclosure can be made of metal (typically sheet steel) and is designed to protect the internal components from environmental factors and unauthorized access.
Busbars
PCC panels have copper or aluminum busbars for efficient power distribution. Busbars are conductive bars that carry electrical current and connect various components within the panel.
Circuit Breakers
These are installed for individual circuits to provide protection against overloads and short circuits. The circuit breakers can be of various types, including air circuit breakers (ACBs) or molded case circuit breakers (MCCBs).
Switchgear
PCC panels incorporate switchgear for controlling and isolating electrical circuits. This may include switches, disconnectors, and other control devices.
Application
01
Industrial Facilities
PCC panels are commonly used in manufacturing plants, refineries, and other industrial facilities to distribute power to motors, machinery, and other equipment.
02
Commercial Buildings
In large commercial buildings, PCC panels serve to distribute power to various loads such as lighting, HVAC systems, and other electrical appliances.
03
Critical Infrastructure
PCC panels are employed in critical infrastructure sectors like hospitals and data centers to ensure a reliable and controlled power supply.
Rating
Voltage Rating
PCC panels are designed for specific voltage levels, such as 415V for industrial applications. The voltage rating depends on the system requirements and local standards.
Current Rating
The current-carrying capacity of the PCC panel is determined by the total load it is expected to handle. This rating is crucial to prevent overheating and ensure the safety of the electrical system.
Short Circuit Withstand Capacity
PCC panels must have adequate short circuit withstand capacity to withstand and interrupt fault currents. This rating is critical for the safety of the system.
IP Rating
The Ingress Protection (IP) rating indicates the level of protection against dust and water. Higher IP ratings are suitable for harsh environmental conditions.
Fault Level
The fault level rating indicates the maximum fault current that the panel can safely handle without damage.
Advantages
Centralized Control
PCC panels provide a centralized control point, making it easier for operators to monitor and manage the electrical distribution system.
Enhanced Safety
Incorporation of protection devices ensures that electrical equipment and circuits are safeguarded against faults, enhancing overall system safety.
Efficient Power Distribution
By providing a structured distribution network, PCC panels help optimize the power supply, reducing wastage and improving overall efficiency.
Easy Maintenance
The centralized nature of PCC panels simplifies maintenance activities, as operators can quickly identify and address issues within the control center.
