1500VDC Solar DCDB Panel

A 1500VDC Solar DCDB Panel is designed to handle high-voltage direct current from large-scale photovoltaic (PV) systems. It combines multiple DC inputs from solar panel strings, providing protection, monitoring, and control functionalities. The panel ensures safe and efficient distribution of DC power to the inverter, which converts it to AC power for grid integration or usage.
Scope

Complete Delivery

Enclosure

Enclosure

Made from robust materials like galvanized steel. Designed to withstand harsh environmental conditions such as UV radiation, dust, and moisture. High IP rating (e.g., IP65 or higher) for ingress protection.

Read More
DC Circuit Breakers

DC Circuit Breakers

Protect the DC circuits from overcurrent and short circuits. Designed to handle high DC voltages and currents typical in solar applications.

Read More
Fuse Holders and Fuses

Fuse Holders and Fuses

Provide overcurrent protection for each string of solar panels. Rated for high DC voltages to ensure safety and reliability.

Read More
Layer 5

Surge Protection Devices (SPDs)

Protect the panel and connected equipment from voltage spikes and surges. Essential for safeguarding against lightning strikes and other transient over-voltages.

Read More
Busbars & Wiring

Busbars & Wiring

Featuring high-conductivity copper busbars with tin coating to minimize voltage drop, along with a neat wiring layout that enhances airflow and optimizes heat management.

Read More
DC Circuit Breakers

DC Disconnect Switches

Allow safe isolation of the solar array or individual circuits for maintenance and emergency shutdowns. Ensure complete disconnection of DC power.

Read More
Monitoring Devices

Monitoring Devices

Measure and display electrical parameters like voltage, current, and power for each string. Enable real-time monitoring and diagnostics to optimize performance.

Read More
Combiner Boxes

Combiner Boxes

Aggregate multiple DC inputs from solar panel strings. Include overcurrent protection and monitoring for each input.

Read More
Protection Relays

Protection Relays

Monitor system parameters and trip breakers or disconnects in case of faults. Ensure the protection of the system and prevent damage to equipment.

Read More
Diodes

Diodes

Prevent reverse current flow that could damage the solar panels. Ensure unidirectional flow of current towards the inverter.

Read More
Applications

Why Choose Us as Your String Combiner Box Manufacturer?

Our 1500VDC Solar DCDB Panels are engineered for high-voltage solar applications, ensuring safe and reliable DC power distribution. Built for superior performance and durability, they deliver efficient power management across solar installations. Designed to meet demanding industry standards, they provide dependable protection and long-term operational reliability.

Utility-Scale Solar Farms

Utility-Scale Solar Farms

Manage DC power from large arrays of solar panels before conversion to AC.

Commercial and Industrial

Commercial and Industrial Solar Installations

Distribute DC power from rooftop or ground-mounted systems.

Microgrids

Microgrids

Integrate solar DC power into localized grids for enhanced reliability and efficiency.

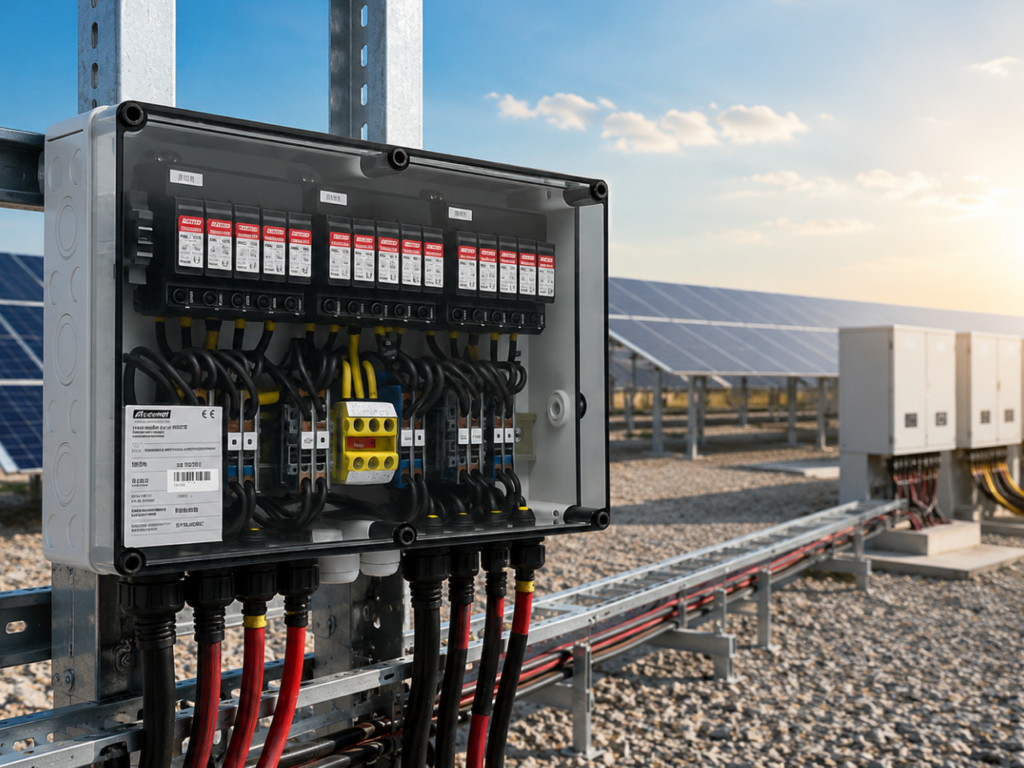

Where It Works (3)
Applications

Where It Works

  • Voltage Rating – Rated for high-voltage applications, ensuring compatibility with large-scale solar power systems.
  • Current Rating – The current rating is selected based on the total output current from the solar array, ensuring safe and reliable operation.
  • Capacity Rating – Designed to meet the capacity requirements of extensive solar installations, providing efficient and dependable power distribution.
Advantages

Complete protection

High Voltage Handling

High Voltage Handling

  • Designed for high-voltage DC systems up to 1500V, improving efficiency and reducing losses.
Safety

Safety

  • Comprehensive protection features ensure safe operation and maintenance.
Reliability

Reliability

  • Robust construction and high-quality components ensure long-term performance.
Scalability

Scalability

  • Suitable for various sizes of solar installations, from small commercial systems to large solar farms.
Contact US
Be a part of Synchro’s journey. Join us and grow your expertise.
Get a Solution
Support
Common Questions
What is a 1500VDC Solar DCDB Panel?
A 1500VDC Solar DCDB (DC Distribution Board) Panel is an electrical panel used in solar power systems to collect and distribute DC power generated from multiple solar strings to the inverter safely.
The main purpose of a Solar DCDB Panel is to combine the DC output from several solar panel strings and deliver it to the inverter while providing protection and safe power distribution.
A 1500VDC rating allows solar systems to operate at higher voltage levels, which helps reduce current losses, improve efficiency, and support large-scale solar installations.
These panels are commonly used in utility-scale solar power plants, large commercial solar installations, and industrial solar energy systems.
A typical DCDB panel includes DC isolators, fuses, surge protection devices, busbars, monitoring devices, and proper wiring for safe DC power distribution.
The panel includes protective devices such as fuses and surge protection that help prevent overcurrent, electrical faults, and voltage surges in the DC circuit.
It provides efficient DC power collection, improved system safety, organized wiring, easier maintenance, and reliable power transfer to the inverter.
Yes, the panel can be customized based on the number of solar strings, current rating, protection requirements, and specific solar project needs.
