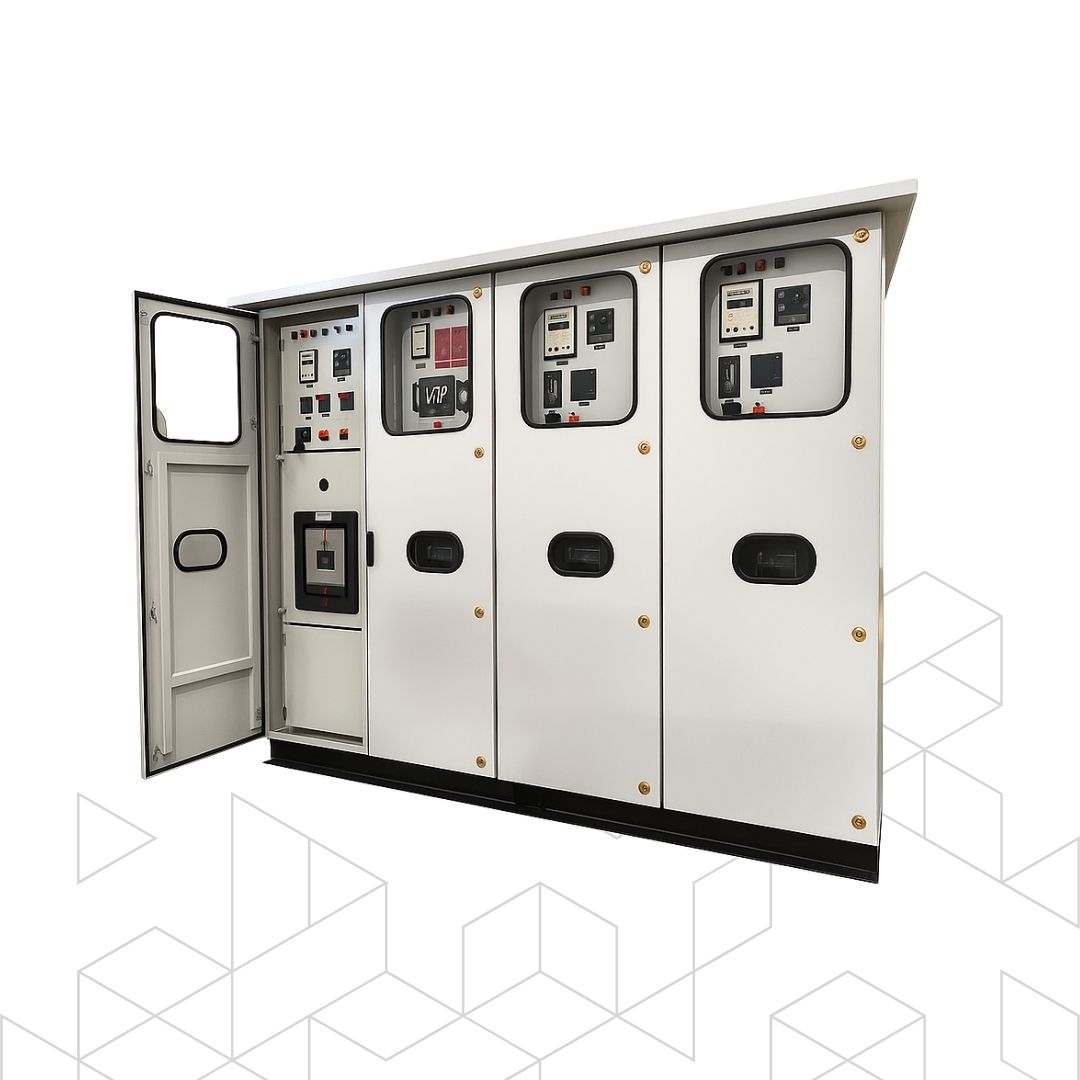

A Vacuum Circuit Breaker (VCB) Panel is an electrical control panel that incorporates vacuum circuit breakers as the primary switching devices. Vacuum circuit breakers use vacuum as the arc quenching medium, providing efficient interruption of electrical currents. VCB panels are widely used in medium-voltage and high-voltage electrical distribution systems for reliable circuit protection.
The core switching devices that interrupt the electrical current. They operate in a vacuum to extinguish the arc when the circuit is interrupted.
Control Panel
Contains the necessary controls, indicators, and protection devices for monitoring and operating the circuit breakers.
Busbars
Conductors that distribute electrical power within the panel.
Protection Relays
Monitor current, voltage, and other parameters to detect faults and initiate the opening of the circuit breakers in case of abnormal conditions.
Metering Devices
Measure and display electrical parameters such as current, voltage, and power for monitoring and control.
Application
01
Medium-Voltage and High-Voltage Networks
VCB panels are commonly used in medium-voltage (MV) and high-voltage (HV) electrical distribution systems to protect and control circuits.
02
Industrial Plants
VCB panels find applications in industrial settings where there is a need for reliable circuit protection and control for various machinery and equipment.
03
Power Substations
VCB panels are installed in power substations as part of the overall protection and switching equipment for the electrical grid.
Rating
Voltage Rating
VCB panels are designed for specific voltage levels, and their rating corresponds to the system voltage for which they are intended. Common voltage ratings include 11/33kv.
Current Rating
The current-carrying capacity of the VCBs is determined based on the maximum fault current and the load current.
Advantages
High Reliability
Vacuum circuit breakers provide reliable performance due to their effective arc quenching capabilities in a vacuum.
Maintenance-Free Operation
Compared to traditional circuit breakers, vacuum circuit breakers require minimal maintenance, contributing to lower operating costs.
Fast Operation
Vacuum circuit breakers have fast operating times, enabling quick interruption of the current during faults, reducing potential damage to the system.
Compact Design
VCB panels are often more compact compared to other types of circuit breaker panels, making them suitable for installations with space constraints.
High Reliability
Vacuum circuit breakers provide reliable performance due to their effective arc quenching capabilities in a vacuum.
Maintenance-Free Operation
Compared to traditional circuit breakers, vacuum circuit breakers require minimal maintenance, contributing to lower operating costs.
Fast Operation
Vacuum circuit breakers have fast operating times, enabling quick interruption of the current during faults, reducing potential damage to the system.
Compact Design
VCB panels are often more compact compared to other types of circuit breaker panels, making them suitable for installations with space constraints.
