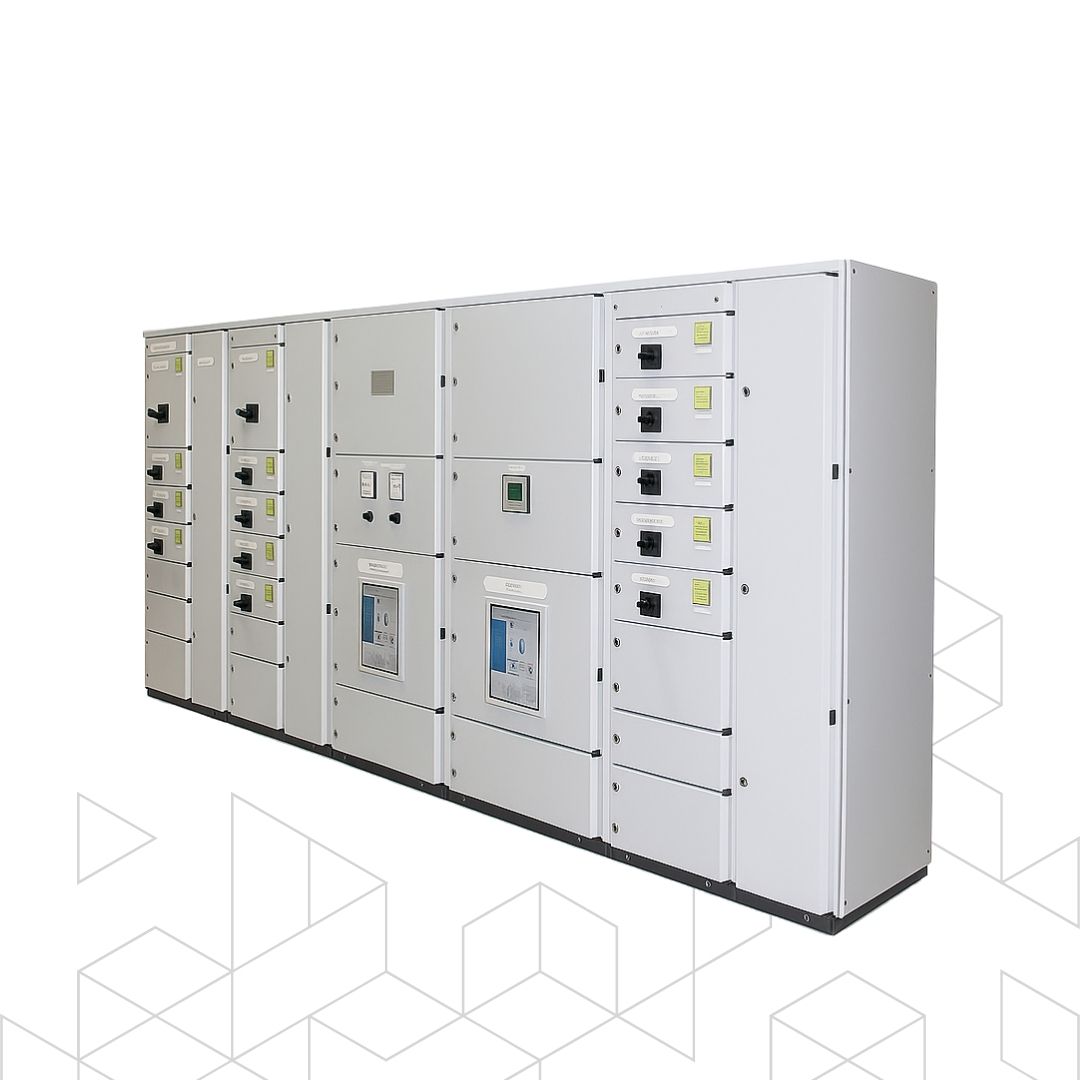

An Electrical Type Tested Panel is a crucial component in electrical power distribution and control systems, designed to ensure safety, reliability, and efficiency. These panels undergo rigorous testing procedures to comply with international standards such as IEC 61439 or UL 508A. Here’s a detailed description:
Made from high-quality steel.
Provides protection against environmental factors like dust, moisture, and physical impacts.
Comes with various IP ratings (e.g., IP54, IP65) to indicate the level of protection against ingress of solid objects and liquids.
Circuit Breakers
Protect the panel and connected circuits from overcurrent and short circuits.
Available in different types, such as MCCBs (Molded Case Circuit Breakers) and ACBs (Air Circuit Breakers).
Busbars
Conductive bars made from copper or aluminum.
Distribute power to various circuits within the panel.
Designed to handle high current loads efficiently.
Switches and Disconnects
Allow manual control of power flow within the panel.
Ensure safe isolation of electrical circuits for maintenance.
Meters and Indicators
Measure and display electrical parameters like voltage, current, power, and frequency.
Provide real-time monitoring of the panel's performance.
Relays and Contactors
Control high-power circuits using low-power signals.
Ensure safe and efficient switching of electrical loads.
Protection Devices
Include surge protectors, fuses, and protective relays.
Safeguard the panel and connected equipment from electrical faults.
Control Units
Programmable Logic Controllers (PLCs) or other control devices.
Automate and manage the operation of the panel and connected systems.
Application
01
Industrial plants
Industrial plants for controlling and distributing power to machinery and equipment.
02
Commercial buildings
Commercial buildings for managing electrical systems and ensuring reliable power supply.
03
Data centers
Data centers for distributing power to servers and other critical IT infrastructure.
04
Utility substations
Utility substations for managing the distribution of electrical power across the grid.
Rating
Voltage Rating
The voltage rating depends on the specific application and the system's requirements. It ensures optimal performance and safety.
Current Rating
The current carrying capacity is determined based on the connected load and the power sources involved. Which is a reliable operation under various conditions.
Capacity Rating
The capacity is customized to meet the demands of different industrial and commercial applications. That ensures you a robust performance.
Advantages
Safety
Ensures high safety standards, reducing the risk of electrical accidents.
Reliability
Provides consistent performance, minimizing downtime and maintenance.
Compliance
Meets international standards, ensuring global acceptability.
Customization
Can be tailored to specific requirements and applications.
Safety
Ensures high safety standards, reducing the risk of electrical accidents.
Reliability
Provides consistent performance, minimizing downtime and maintenance.
Compliance
Meets international standards, ensuring global acceptability.
Customization
Can be tailored to specific requirements and applications.
