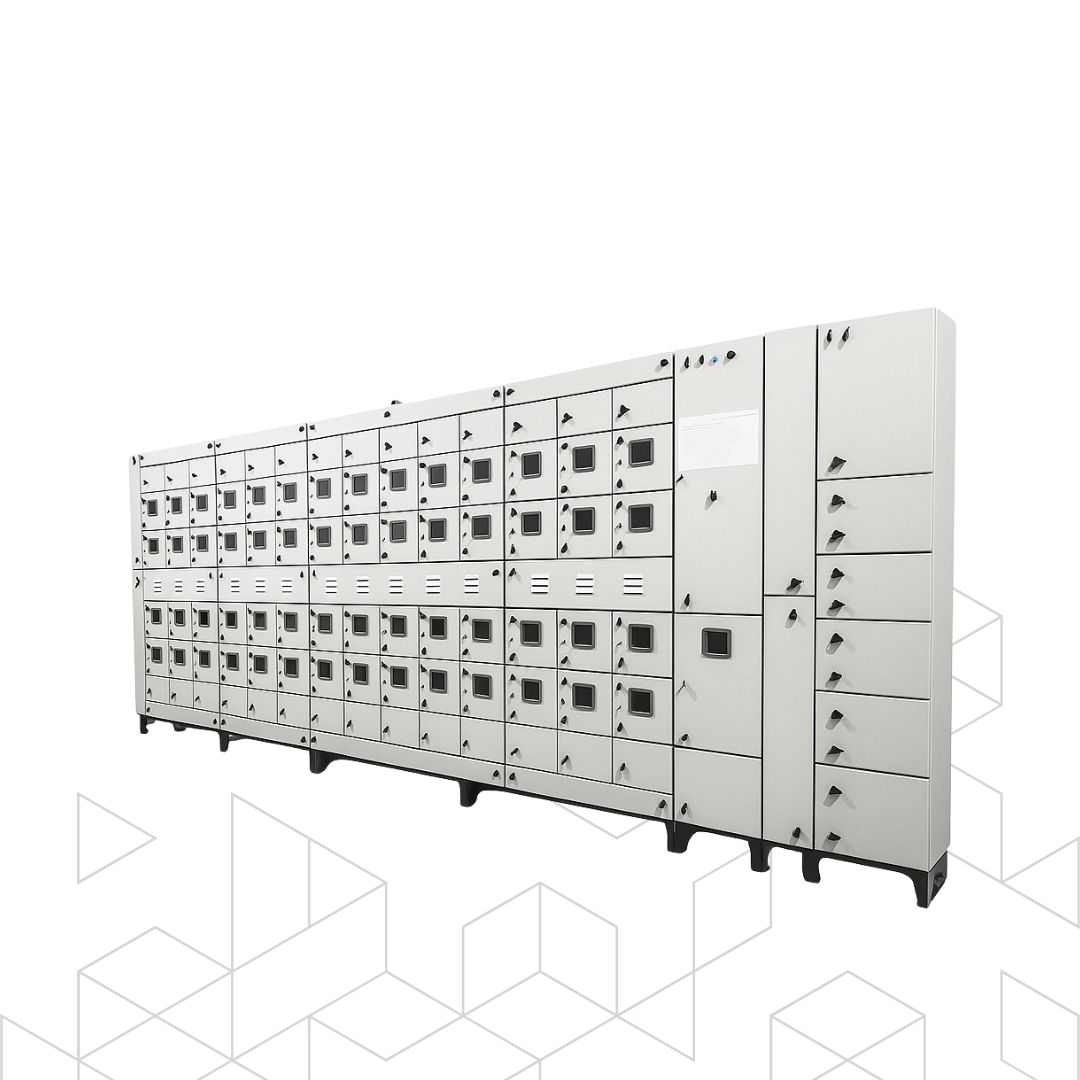

A Meter Panel, also known as a Metering Panel or Meter Board, is an electrical panel designed to house and organize various types of electrical meters. These panels are crucial for monitoring and measuring electrical parameters such as voltage, current, power consumption, and other metrics in residential, commercial, and industrial settings.
Measure electrical parameters such as voltage, current, power factor, and energy consumption. Different types of meters may be used, including energy meters, power meters, and multifunction meters.
Circuit Breakers or Fuses
Provide protection to the metering circuits and enable isolation during maintenance or emergencies.
Busbars
Conductors that distribute electrical power within the panel to connect the meters to the electrical system.
Enclosure
Protects the meters and associated components from environmental factors and ensures safety.
Display and Indicators
May include a display unit or indicators for visualizing meter readings and system status.
Application
01
Residential Buildings
Meter panels in residential settings typically house energy meters that measure the electricity consumption of individual households. They are often located near the main electrical distribution panel.
02
Commercial Buildings
In commercial establishments, meter panels may include a variety of meters to monitor and measure electrical parameters for billing, energy management, and monitoring purposes.
03
Industrial Facilities
Meter panels in industrial settings play a crucial role in monitoring the power consumption of different machines, equipment, and processes for operational and cost management.
Rating
Voltage Rating
The voltage rating is determined by the electrical system's voltage for which the meter panel is designed. Common residential voltages include 120V and 240V, while commercial and industrial systems may have higher voltages.
Current Rating
The current rating is determined by the load and the capacity of the meter panel to handle the connected electrical circuits.
Advantages
Monitoring and Billing
Meter panels allow for accurate monitoring of electricity consumption, facilitating billing in commercial and residential settings.
Energy Management
By providing real-time data on power consumption, meter panels assist in optimizing energy usage and implementing energy management strategies.
Diagnostic Information
The data collected by the meters can provide diagnostic information, helping identify inefficiencies, faults, or abnormal conditions in the electrical system.
Compliance
Meter panels contribute to regulatory compliance by accurately measuring and recording electricity consumption, especially in environments where compliance with energy standards is required.
Monitoring and Billing
Meter panels allow for accurate monitoring of electricity consumption, facilitating billing in commercial and residential settings.
Energy Management
By providing real-time data on power consumption, meter panels assist in optimizing energy usage and implementing energy management strategies.
Diagnostic Information
The data collected by the meters can provide diagnostic information, helping identify inefficiencies, faults, or abnormal conditions in the electrical system.
Compliance
Meter panels contribute to regulatory compliance by accurately measuring and recording electricity consumption, especially in environments where compliance with energy standards is required.
