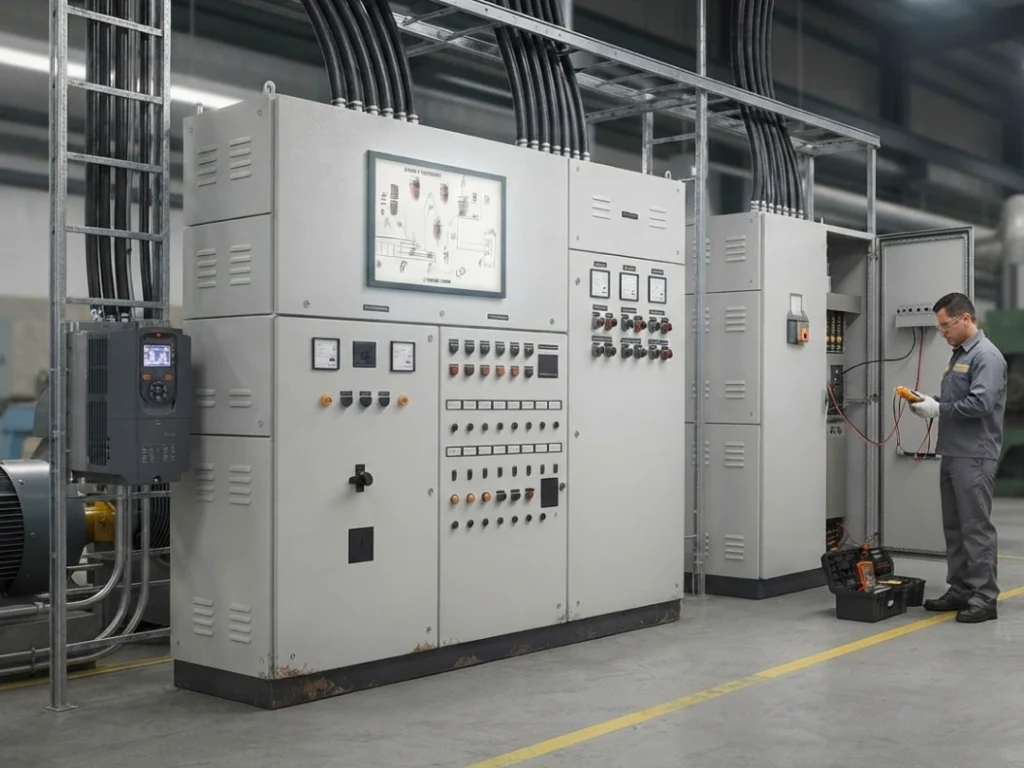

A Variable Frequency Drive (VFD) Panel is an electrical control panel specifically designed to house and control Variable Frequency Drives. VFDs are devices that control the speed of electric motors by varying the frequency and voltage supplied to the motor. The VFD panel provides the necessary components and infrastructure to control and protect the VFD.
The main device responsible for adjusting the speed of the connected motor.
Control Panel
Contains the necessary controls, indicators, and interface devices for operating and monitoring the VFD.
Motor Control Devices
Switches, contactors, and circuit breakers that control the operation of the motor.
Input/Output Modules
Interface with sensors and other devices to provide feedback and control signals to the VFD.
Enclosure
Protects the components from environmental factors and ensures safety.
Application
01
Industrial Automation
VFD panels are commonly used in industrial settings to control the speed of electric motors in various applications, such as pumps, fans, conveyors, and compressors.
02
HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, VFD panels control the speed of motors to optimize energy efficiency and airflow.
03
Water and Wastewater Treatment
VFDs are utilized in water and wastewater treatment plants to control pumps and other equipment efficiently.
Rating
Voltage Rating
The voltage rating is determined by the electrical system's voltage for which the VFD panel is designed.
Current Rating
The current-carrying capacity is determined by the total load of the connected motor and associated equipment.
Advantages
Energy Savings
VFD panels enable precise control of motor speed, allowing for energy-efficient operation by matching motor speed to the actual load requirements.
Reduced Mechanical Stress
Controlling the speed of motors with VFDs reduces mechanical stress and wear, extending the lifespan of the motor and associated equipment.
Soft Start and Stop
VFDs provide smooth and controlled acceleration and deceleration of motors, reducing electrical and mechanical stress during start-up and shutdown.
Process Control
VFD panels offer precise control over motor speed, enabling better control of industrial processes and improving overall system performance.
