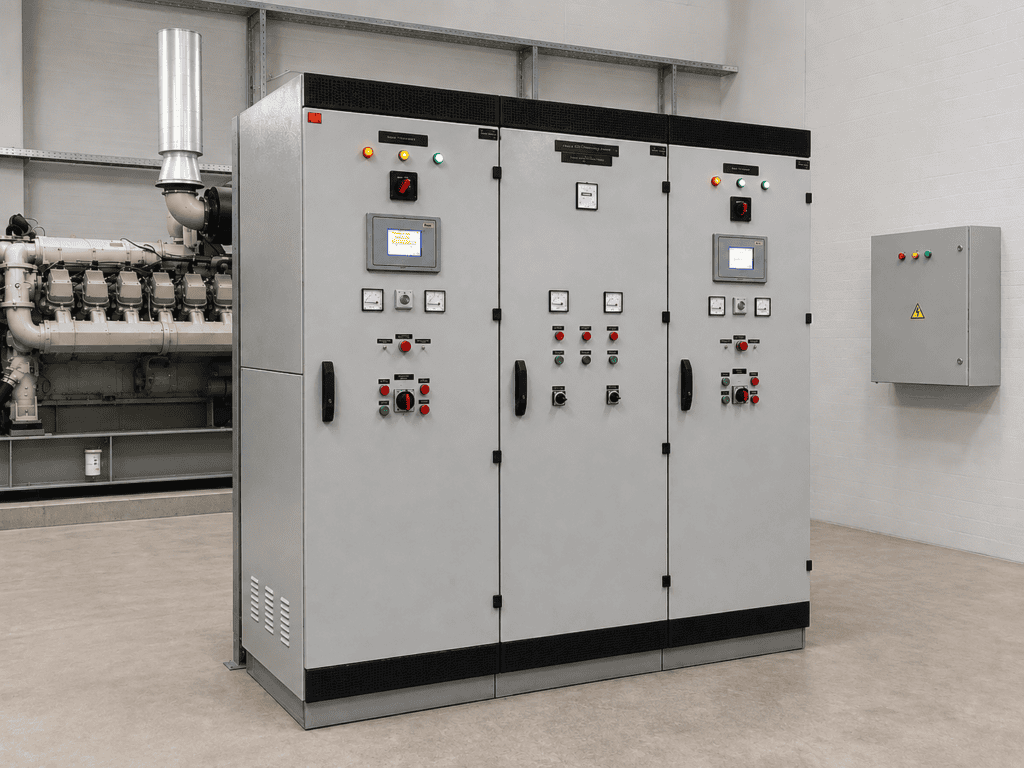

A Synchronizing Panel is an integral component in electrical power systems where multiple generators are used to supply power to a common bus or electrical grid. The primary purpose of the synchronizing panel is to ensure that the multiple power sources (generators) are synchronized in terms of frequency, phase, and voltage before connecting them to the same electrical network. Proper synchronization is crucial to prevent issues such as voltage and frequency mismatches that can lead to instability and damage in the power system.
Includes synchronizing relays, synchronizing lamps, and other devices that measure and control the frequency, phase, and voltage of the generators.
Busbar
Connects the generators to the common electrical bus or grid.
Control Panel
Contains the necessary controls, switches, and indicators for the operator to monitor and synchronize the generators.
Protection Devices
Provides protection against overcurrent, overvoltage, and other faults that may occur during synchronization.
Metering Devices
Measures and displays parameters such as voltage, current, and power factor to facilitate proper synchronization.
Application
01
Power Plants
Synchronizing panels are commonly used in power plants where multiple generators are employed to supply power to the grid or various loads. This is especially critical in large-scale power generation facilities.
02
Islanded Systems
In scenarios where the power system is isolated or operates independently (islanded), synchronizing panels are used to connect and synchronize generators for reliable power supply.
03
Emergency Backup Systems
Synchronizing panels are utilized in situations where backup generators need to be synchronized before supplying power to critical loads during mains power failures.
Rating
Voltage Rating
The voltage rating depends on the system requirements, and synchronizing panels are designed to match the voltage of the generators and the electrical grid.
Current Rating
The current-carrying capacity is determined by the connected generators and the load requirements.
Advantages
Grid Stability
Ensures stable and reliable operation of the electrical grid by synchronizing generators and preventing disturbances in voltage and frequency.
Prevents Transients
Synchronization panels prevent sudden changes in voltage and frequency that can occur if unsynchronized generators are connected to the grid.
Load Sharing
Allows multiple generators to share the load efficiently, ensuring that each generator contributes to the overall power supply without overloading any particular unit.
Automated Control
The use of synchronizing relays and automated controls simplifies the synchronization process, reducing the need for manual intervention and minimizing the risk of human error.
